Part#:NF466L2

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

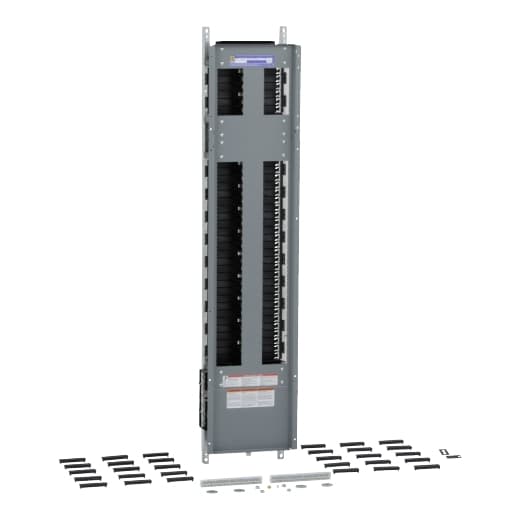

Square D by Schneider Electric NF466L2 is a panelboard designed for three-phase (3PH-4W) networks, with a rated voltage of 480Y/277Vac and a rated current of 250A. This panelboard interior accommodates up to 66 circuits within its 66-space configuration. It features aluminium busbars and is compatible with aluminium lugs ranging from 6AWG to 350kcmil for both line and neutral connections, ensuring compatibility with a wide range of wiring requirements.

Product Details

  • Busbar Material
    Aluminium
  • Wiring Configuration
    4-wire
  • Branch Circuit Breaker Type
    EDB/EDG/EDJ
  • [Iu] Rated Interrupted Current
    65 kA
  • Width
    10.44 in (265.18 mm)
  • Panelboard Type
    Main lugs
  • Line Rated Current
    250 A
  • Height
    57 in (1447.80 mm)
  • Number Of Spaces
    66
  • Voltage Rating
    600Y/347 V AC
  • Enclosure Nominal Width
    20 in (508.00 mm)
  • Number Of Phases
    3 phase
  • Enclosure Nominal Height
    62 in (1574.80 mm) 74 in (1879.60 mm)
  • Enclosure Nominal Depth
    5.75 in (146.05 mm) NEMA 1 6.5 in (165.10 mm) NEMA 3R/5/12
  • Connections - Terminals
    Lug line AWG 6...350 kcmil aluminium Lug neutral AWG 6...350 kcmil aluminium
  • Tightening Torque
    40.01…50.01 lbf.in (4.52…5.65 N.m) 0.02…0.10 in² (13.30…67.43 mm²) (AWG 6...AWG 2/0) 100.01 lbf.in (11.3 N.m) 0.02…0.10 in² (13.30…67.43 mm²) (AWG 6...AWG 2/0) 274.99 lbf.in (31.07 N.m) 0.02…0.27 in² (13.30…177.3 mm²) (AWG 6...350 kcmil) 27

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NF466L2 on Powermatic Associates is $3,800.00. Order now.
