NF484L6C Schneider Electric Industrial Automation Components

Name: NF484L6C
Brand: Schneider Electric
Price: 6375 USD
Availability: BackOrder

Part#:NF484L6C

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

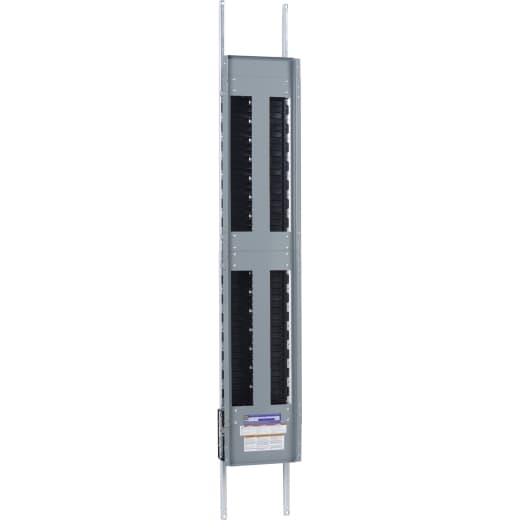

Square D by Schneider Electric NF484L6C is a panelboard designed for three-phase (3PH-4W) networks, featuring a copper busbar and rated for a current of 600A. It accommodates an AC voltage of 480Y/277Vac and offers 84 spaces for circuits. The panelboard is equipped with aluminium lugs for both line and neutral connections, supporting a cross-section range of 1/0AWG to 750kcmil. This product is specifically configured to manage 84 circuits within its framework.

Product Details

Number Of Spaces
84
Width
10.44 in (265.18 mm)
Net Weight
55.01 lb(US) (24.95 kg)
Busbar Material
Copper
Wiring Configuration
4-wire
Line Rated Current
600 A
Enclosure Nominal Width
20 in (508.00 mm)
Voltage Rating
600Y/347 V AC
Branch Circuit Breaker Type
EDB/EDG/EDJ
Panelboard Type
Main lugs
[Iu] Rated Interrupted Current
65 kA
Number Of Phases
3 phase
Enclosure Nominal Height
86 in (2184.40 mm)
Height
86 in (2184.40 mm)
Enclosure Nominal Depth
5.75 in (146.05 mm) NEMA 1 6.5 in (165.10 mm) NEMA 3R/5/12
Connections - Terminals
Lug line AWG 1/0...750 kcmil aluminium Lug neutral AWG 1/0...750 kcmil aluminium
Tightening Torque
274.99…300.04 lbf.in (31.07…33.90 N.m) 0.08…0.59 in² (53.48…380 mm²) (AWG 1/0...750 kcmil) 274.99…300.04 lbf.in (31.07…33.90 N.m) 0.08…0.27 in² (53.48…177.3 mm²) (AWG 1/0...350 kcmil) 549.98 lbf.in (62.14 N.m) 0.08…0.59 in² (53.48…380 mm²) (AWG

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
