NSYCRN108300 Schneider Electric Industrial Automation Components

NSYCRN108300 on Powermatic Associates
Schneider Electric

Part#:NSYCRN108300

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

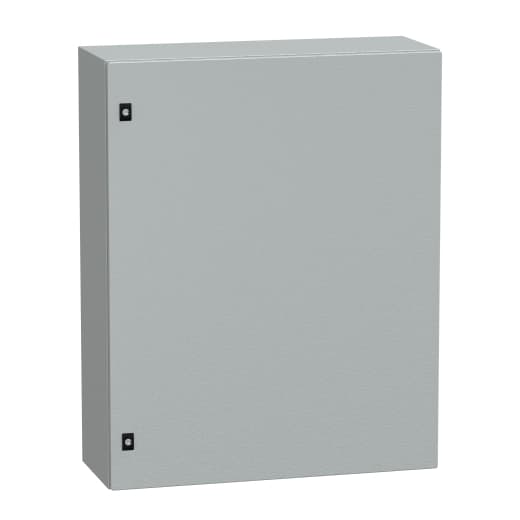

Schneider Electric NSYCRN108300 is a wall-mounted empty compact universal enclosure with a plain door, designed for versatile applications. It features a mounting mode that includes wall fixing with 4 holes, sealed with plastic plugs to ensure an IP66 and NEMA 4 degree of protection, making it suitable for demanding environments. The enclosure is constructed from steel and coated with epoxy-polyester painting for durability. It comes in grey (RAL 7035), with dimensions of 1000 mm in height, 800 mm in width, and 300 mm in depth. The enclosure is secured with a 3 mm double-bar lock type, ensuring controlled access.

Product Details

  • Door Type
    Solid
  • Installation Accessory Type
    Wall-mounting
  • Accessibility For Operation
    Front
  • Enclosure Nominal Width
    31.50 in (800 mm)
  • Door Opening Side
    Reversible 120 °)
  • Application
    Multi-purpose
  • Product Name
    Spacial CRN
  • Enclosure Nominal Height
    39.37 in (1000 mm)
  • Type Of Gland Plate
    Standard
  • Range
    Spacial
  • Mounting Plate Description
    Without mounting plate
  • Standards
    IEC 62208
  • Enclosure Nominal Depth
    11.81 in (300 mm)
  • Lock Type
    3 mm double-bar lock
  • Category
    Compact enclosure
  • Number Of Doors
    Front face 1
  • Surface Finish
    epoxy-polyester powder
  • Material
    Body steel
  • Net Weight
    74.96 lb(US) (34 kg)
  • Color
    Gray RAL 7035)
  • Body Type
    Sides made from a single folded section Back welded with double profile forming a protected sealed area
  • Removable Parts
    Door by hinges Cable gland plate by screws
  • Product Certifications
    CUL UL DNV-GL
  • Device Composition
    1 body 1 door 1 lock 2 cable gland plate bottom

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NSYCRN108300 on Powermatic Associates is $373.92. Order now.

NSYCRN108300 Related Documents

Catalog-1631029283014.pdfInstruction Sheet-1631029283007.pdfProduct Datasheet-1631029283016.pdf
