NSYCRN86300 Schneider Electric Industrial Automation Components

NSYCRN86300 on Powermatic Associates
Schneider Electric

Part#:NSYCRN86300

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

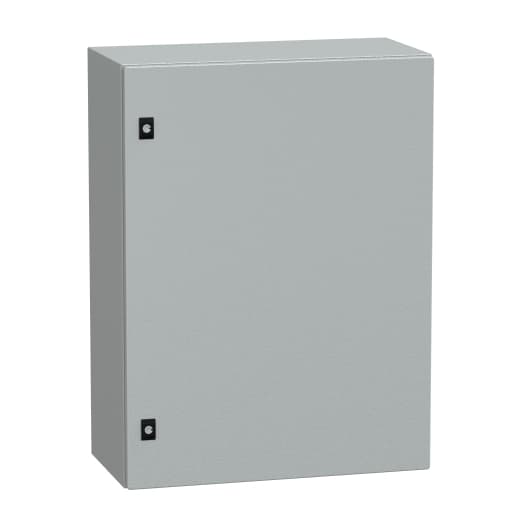

Schneider Electric NSYCRN86300 is an enclosure designed for wall-mounting, featuring a plain door and belonging to the CRN sub-range. This compact universal enclosure is equipped with wall fixing capabilities through 4 holes, which are sealed with plastic plugs to ensure an IP66 and NEMA 4 degree of protection. Constructed from steel and coated with epoxy-polyester painting, it measures 800 mm in height, 600 mm in width, and 300 mm in depth. The enclosure is finished in grey (RAL 7035) and utilizes a 3 mm double-bar lock type for securing the door.

Product Details

  • Installation Accessory Type
    Wall-mounting
  • Enclosure Nominal Width
    23.62 in (600 mm)
  • Range
    Spacial
  • Enclosure Nominal Depth
    11.81 in (300 mm)
  • Category
    Compact enclosure
  • Type Of Gland Plate
    Standard
  • Door Type
    Solid
  • Surface Finish
    epoxy-polyester powder
  • Mounting Plate Description
    Without mounting plate
  • Enclosure Nominal Height
    31.50 in (800 mm)
  • Number Of Doors
    Front face 1
  • Standards
    IEC 62208
  • Door Opening Side
    Reversible 120 °)
  • Material
    Body steel
  • Product Name
    Spacial CRN
  • Accessibility For Operation
    Front
  • Lock Type
    3 mm double-bar lock
  • Application
    Multi-purpose
  • Net Weight
    48.50 lb(US) (22 kg)
  • Color
    Gray RAL 7035)
  • Removable Parts
    Door by hinges Cable gland plate by screws
  • Body Type
    Sides made from a single folded section Back welded with double profile forming a protected sealed area
  • Product Certifications
    UL CUL DNV-GL
  • Device Composition
    1 body 1 cable gland plate 1 door 1 lock

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NSYCRN86300 on Powermatic Associates is $287.73. Order now.
