NSYPLA10103TG Schneider Electric Industrial Automation Components

NSYPLA10103TG on Powermatic Associates
Schneider Electric

Part#:NSYPLA10103TG

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

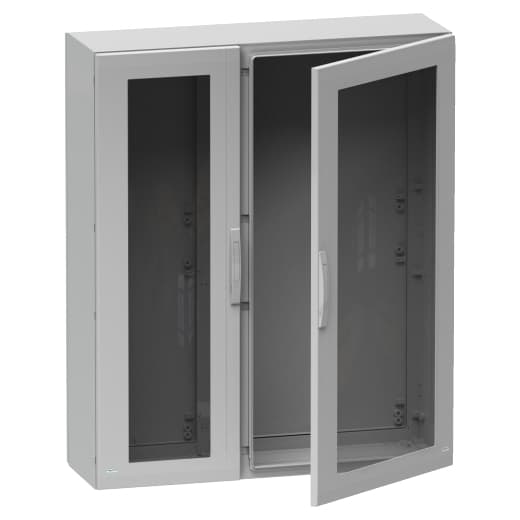

Schneider Electric - NSYPLA10103TG

Product Details

  • Enclosure Type
    Multi-purpose
  • Lock Type
    4 points lock, 5 mm double-bar
  • Color
    Gray RAL 7035)
  • Range
    Thalassa
  • Enclosure Mounting
    Floor-standing
  • Material
    polyester reinforced with fibreglass
  • Product Or Component Type
    Suitable enclosure
  • Nominal Depth
    12.60 in (320 mm)
  • Door Type
    Transparent front
  • Electrical Insulation Class
    Class II
  • Version
    PLA
  • Door Opening Side
    Right and left 120 °)
  • Nominal Width
    39.37 in (1000 mm)
  • Nominal Height
    39.37 in (1000 mm)
  • Body Type
    Sealed top and bottom part assembled with side parts
  • Product Name
    Thalassa PLA
  • Number Of Doors
    2
  • Standards
    IEC 62208 UL 508 A
  • Accessibility For Operation
    Front Rear
  • Removable Parts
    Door by hinges Rear panel by fixing element
  • Product Certifications
    UL/cUL listed DNV Marine Veritas
  • NEMA Degree Of Protection
    NEMA 1 NEMA 2 NEMA 12 NEMA 13
  • Device Composition
    1 top part 1 bottom part 2 side part 2 door 2 rear panel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NSYPLA10103TG on Powermatic Associates is $1,240.48. Order now.
