NSYPLSC3654AG Schneider Electric Industrial Automation Components

NSYPLSC3654AG on Powermatic Associates
Schneider Electric

Part#:NSYPLSC3654AG

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

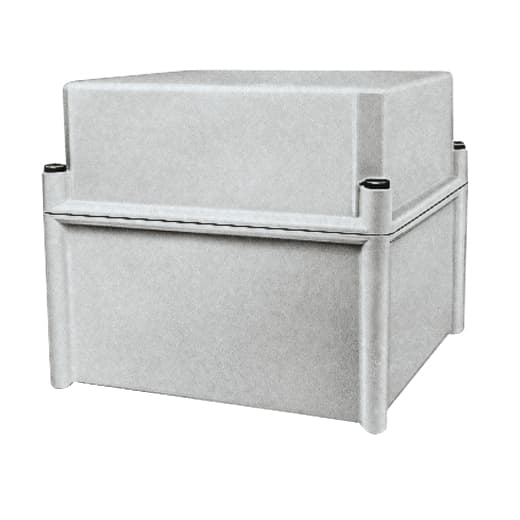

Schneider Electric - NSYPLSC3654AG

Product Details

  • Nominal Depth
    9.06 in (230 mm)
  • Nominal Width
    21.26 in (540 mm)
  • Removable Parts
    Cover locking screw
  • Device Short Name
    PLS
  • Body Type
    One piece moulded
  • Enclosure Type
    Multi-purpose
  • Color
    Body Gray RAL 7035)
  • Product Certifications
    UL
  • Category
    Insulating modular box
  • Product Name
    Thalassa PLS
  • Lock Type
    Slot screw
  • Enclosure Mounting
    Wall mounted
  • Type Of Front Cover
    High plain cover
  • Nominal Height
    14.17 in (360 mm)
  • Range
    Thalassa
  • Material
    Cover polycarbonate Rear polyester reinforced with fibreglass
  • Device Composition
    1 cover on enclosure 1 rear part on enclosure locking screws
  • Standards
    NEMA 4X NEMA classification 13 IEC 62208

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NSYPLSC3654AG on Powermatic Associates is $136.59. Order now.

NSYPLSC3654AG Related Documents

Instruction Sheet-1631032960046.pdfProduct Datasheet-1631032960041.pdf
