Schneider Electric

Part#:NSYS3D121030DT

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

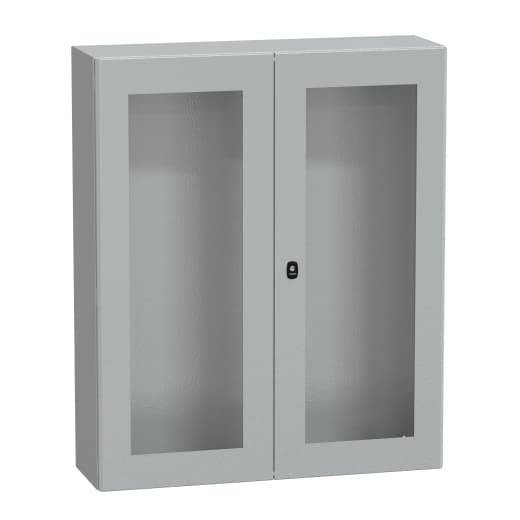

Schneider Electric - NSYS3D121030DT

Product Details

  • Type Of Gland Plate
    Standard
  • Surface Finish
    epoxy-polyester powder
  • Product Name
    Spacial S3D
  • Range
    Spacial
  • Accessibility For Operation
    Front
  • Category
    Compact enclosure
  • Installation Accessory Type
    Wall-mounting
  • Net Weight
    114.64 lb(US) (52 kg)
  • Enclosure Nominal Height
    47.24 in (1200 mm)
  • Door Opening Side
    Reversible 120 °)
  • Enclosure Nominal Width
    39.37 in (1000 mm)
  • Enclosure Nominal Depth
    11.81 in (300 mm)
  • Application
    Multi-purpose
  • Number Of Doors
    Front face 2
  • Standards
    IEC 62208
  • Lock Type
    3 points lock, 3 mm double-bar
  • Mounting Plate Description
    Without mounting plate
  • Color
    Gray RAL 7035)
  • Door Type
    Glass
  • Removable Parts
    Door by hinges Cable gland plate by screws
  • Body Type
    Gutter-shaped front rail double sheet thickness Single piece body
  • Material
    Body steel Door steel and security glass
  • Device Composition
    1 body 2 cable gland plate 1 lock 2 door
  • Product Certifications
    CUL BV DNV UL GL LR

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NSYS3D121030DT on Powermatic Associates is $657.26. Order now.
