NSYSF201040T Schneider Electric Industrial Automation Components

NSYSF201040T on Powermatic Associates
Schneider Electric

Part#:NSYSF201040T

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

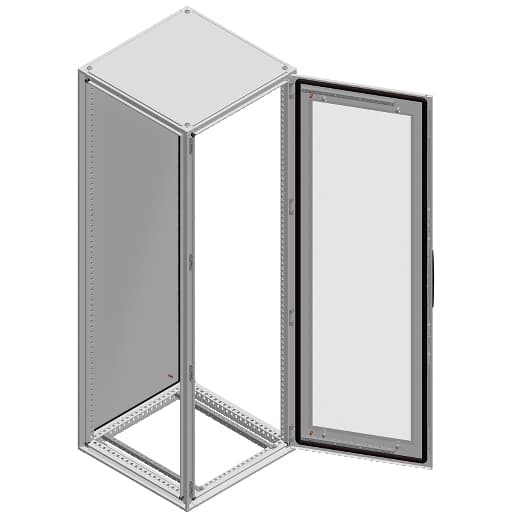

Schneider Electric - NSYSF201040T

Product Details

  • Enclosure Nominal Width
    39.37 in (1000 mm)
  • Lock Type
    4 points lock, handle with 5 mm double bar insert front door
  • Application
    Multi-purpose
  • Product Or Component Type
    Suitable enclosure
  • Number Of Doors
    Front 1
  • Range
    Spacial
  • Door Opening Side
    Reversible 120 °)
  • Door Type
    Glass front
  • Enclosure Nominal Depth
    15.75 in (400 mm)
  • Extended Range
    Spacial SF
  • Enclosure Nominal Height
    78.74 in (2000 mm)
  • Type Of Gland Plate
    Without gland plate
  • Enclosure Mounting
    Floor-standing
  • Net Weight
    268.74 lb(US) (121.9 kg)
  • Mounting Plate Description
    Without mounting plate
  • Surface Finish
    epoxy-polyester powder
  • Color
    Enclosure Gray RAL 7035) Handle Black RAL 9005)
  • Accessibility For Operation
    Sides of enclosure Front Rear
  • Structure Type
    Formed from a single section Vertical uprights joined with top and bottom frames Panels and doors built into the structure Perforated structure with a pitch of 25 mm
  • Removable Parts
    Door by screws hinge Rear panel by screws Roof by screws Mounting plate bracket by screws Sliding rail by screws
  • Material
    Frame galvanised steel Uprights galvanised steel Door Securit glass Door sheet steel Panels sheet steel Hinge zamak Handle polyamide 6 with 30 % fibre glass
  • Device Composition
    2 sliding rails 4 mounting plate bracket 1 structure 1 door 1 locking system with handle door 1 rear panel 1 roof

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
