NSYS3X3315 Schneider Electric Industrial Automation Components

NSYS3X3315 on Powermatic Associates
Schneider Electric

Part#:NSYS3X3315

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

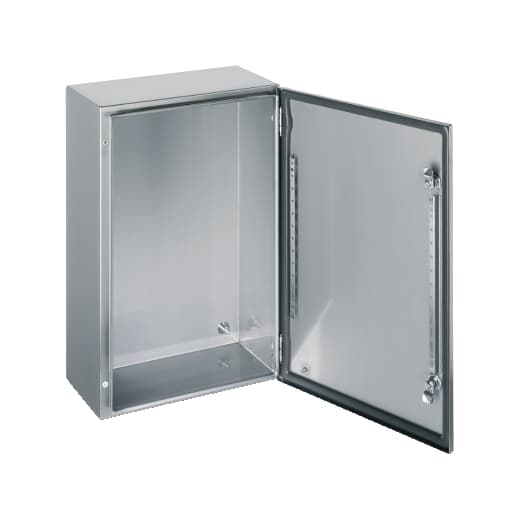

Schneider Electric - NSYS3X3315

Product Details

  • Product Name
    Spacial S3X
  • Number Of Doors
    Front face 1
  • Accessibility For Operation
    Front
  • Category
    Compact enclosure
  • Enclosure Type
    Multi-purpose
  • Product Installation
    Wall-mounting
  • Door Opening Side
    Reversible 120 °)
  • Net Weight
    8.96 lb(US) (4.062 kg)
  • Nominal Depth
    5.91 in (150 mm)
  • Nominal Width
    11.81 in (300 mm)
  • Range
    Spacial
  • Mounting Plate Description
    Without mounting plate
  • Door Type
    Solid
  • Nominal Height
    11.81 in (300 mm)
  • Removable Parts
    Door by hinges
  • Type Of Gland Plate
    Without gland plate
  • Lock Type
    3 mm double-bar lock
  • Body Type
    Single piece body, cross-shaped structure Gutter shaped front rail
  • Surface Finish
    Body and door Scotch-Brite® brushed Lock chromium plated
  • Device Composition
    1 body 1 lock door 1 door
  • Material
    Body and door stainless steel 304L Lock zamak Hinge stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NSYS3X3315 on Powermatic Associates is $290.05. Order now.

NSYS3X3315 Related Documents

Product Datasheet-1631031575618.pdfCatalog-1631031575620.pdfInstruction Sheet-1631031575622.pdf
