NSYSM16640T Schneider Electric Industrial Automation Components

NSYSM16640T on Powermatic Associates
Schneider Electric

Part#:NSYSM16640T

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

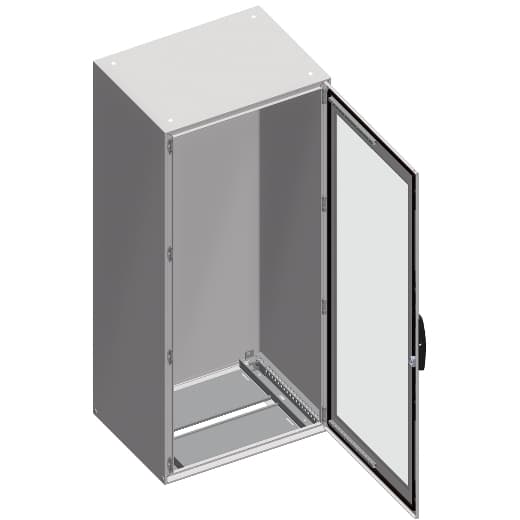

Schneider Electric - NSYSM16640T

Product Details

  • Lock Type
    4 points lock, handle with 5 mm double bar insert
  • Product Or Component Type
    Compact enclosure
  • Number Of Doors
    Front 1
  • Product Name
    Spacial SM
  • Enclosure Nominal Width
    23.62 in (600 mm)
  • Surface Finish
    epoxy-polyester powder
  • Range
    Spacial
  • Cable Entry
    1 entry
  • Net Weight
    147.71 lb(US) (67 kg)
  • Enclosure Nominal Depth
    15.75 in (400 mm)
  • Door Opening Side
    Reversible 120 °)
  • Installation Accessory Type
    Floor-standing
  • Mounting Plate Description
    Without mounting plate
  • Enclosure Nominal Height
    62.99 in (1600 mm)
  • Accessibility For Operation
    Front
  • Application
    Multi-purpose
  • Door Type
    Glass
  • Type Of Gland Plate
    Standard
  • Color
    Enclosure Gray RAL 7035) Handle Black RAL 9005)
  • Removable Parts
    Door by screws hinge Mounting plate bracket by screws
  • Body Type
    Single piece body with welded rear panel Front part forming a rigid frame with welded corners
  • Material
    Door Securit glass Body sheet steel Door sheet steel Hinge zamak
  • Device Composition
    1 body 1 cable gland plate 1 locking system with handle door 4 mounting plate bracket 1 door

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NSYSM16640T on Powermatic Associates is $2,277.09. Order now.
