NSYSM20850 Schneider Electric Industrial Automation Components

NSYSM20850 on Powermatic Associates
Schneider Electric

Part#:NSYSM20850

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

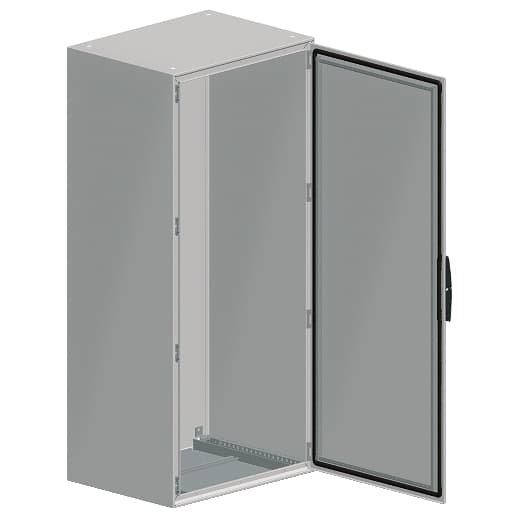

Schneider Electric - NSYSM20850

Product Details

  • Enclosure Nominal Depth
    19.69 in (500 mm)
  • Cable Entry
    1 entry
  • Enclosure Nominal Width
    31.50 in (800 mm)
  • Product Or Component Type
    Compact enclosure
  • Door Opening Side
    Reversible 120 °)
  • Surface Finish
    epoxy-polyester powder
  • Door Type
    Solid
  • Product Name
    Spacial SM
  • Mounting Plate Description
    Without mounting plate
  • Enclosure Nominal Height
    78.74 in (2000 mm)
  • Lock Type
    4 points lock, handle with 5 mm double bar insert
  • Application
    Multi-purpose
  • Installation Accessory Type
    Floor-standing
  • Type Of Gland Plate
    Standard
  • Range
    Spacial
  • Number Of Doors
    Front 1
  • Net Weight
    224.87 lb(US) (102 kg)
  • Accessibility For Operation
    Front
  • Device Composition
    1 body 1 cable gland plate 1 locking system with handle door 4 mounting plate bracket 1 door
  • Removable Parts
    Door by screws hinge Mounting plate bracket by screws
  • Body Type
    Front part forming a rigid frame with welded corners Single piece body with welded rear panel
  • Color
    Enclosure Gray RAL 7035) Handle Black RAL 9005)
  • Material
    Body sheet steel Door sheet steel Hinge zamak

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NSYSM20850 on Powermatic Associates is $1,611.45. Order now.

NSYSM20850 Related Documents

Instruction Sheet-1631040761739.pdfCatalog-1631040761742.pdfProduct Datasheet-1631040761748.pdf
