NSYSMX201660 Schneider Electric Industrial Automation Components

NSYSMX201660 on Powermatic Associates
Schneider Electric

Part#:NSYSMX201660

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

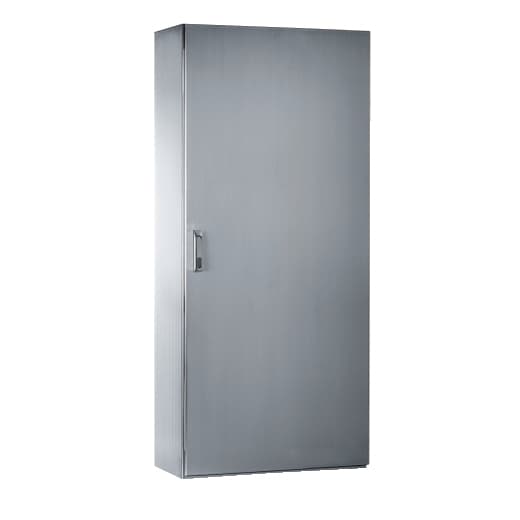

Schneider Electric - NSYSMX201660

Product Details

  • Mounting Plate Description
    Without mounting plate
  • Nominal Width
    62.99 in (1600 mm)
  • Accessibility For Operation
    Front
  • Range
    Spacial
  • Body Type
    Single piece body folded and welded
  • Nominal Depth
    23.62 in (600 mm)
  • Category
    Compact enclosure
  • Door Opening Side
    Reversible 120 °)
  • Product Installation
    Floor-standing
  • Door Type
    Solid
  • Product Name
    Spacial SMX
  • Lock Type
    3 points lock, handle with 5 mm double-bar insert
  • Net Weight
    440.92 lb(US) (200 kg)
  • Nominal Height
    78.74 in (2000 mm)
  • Type Of Gland Plate
    Plain
  • Enclosure Type
    Multi-purpose
  • Number Of Doors
    Front face 2
  • Surface Finish
    Enclosure Scotch-Brite® brushed Handle painted
  • Removable Parts
    Door by hinges Mounting plate bracket by screws Cable gland plate by clips
  • Material
    Body and door stainless steel 304L Handle zamak Hinge stainless steel
  • Device Composition
    1 body 2 door 1 cable gland plate 1 locking system with handle door 4 mounting plate bracket

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NSYSMX201660 on Powermatic Associates is $9,878.84. Order now.
