NSYTBP342916H Schneider Electric Industrial Automation Components

NSYTBP342916H on Powermatic Associates
Schneider Electric

Part#:NSYTBP342916H

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

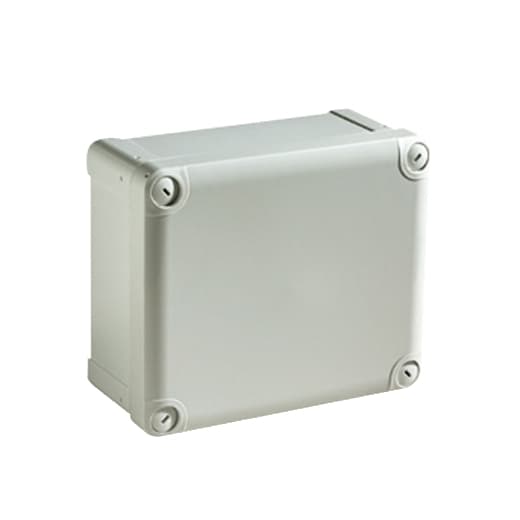

Schneider Electric - NSYTBP342916H

Product Details

  • Width
    11.46 in (291 mm)
  • Internal Depth
    6.30 in (160 mm)
  • Removable Parts
    Cover by captive screws
  • Range
    Thalassa
  • Internal Height
    12.80 in (325 mm)
  • Internal Width
    10.83 in (275 mm)
  • Lock Type
    Captive screw flat outside sealed area
  • Depth
    6.61 in (168 mm)
  • Material
    polycarbonate
  • Height
    13.43 in (341 mm)
  • Type Of Front Cover
    High plain cover
  • Net Weight
    3.66 lb(US) (1.66 kg)
  • Product Name
    Thalassa TBP
  • Body Type
    One piece moulded
  • Mounting Location
    Outdoor
  • Category
    Industrial box
  • Color
    Gray RAL 7035)
  • Device Application
    Multi-purpose
  • Cover Fixing
    Plastic screws
  • Electrical Insulation Class
    Class II
  • Enclosure Mounting
    Wall mounted
  • Standards
    IEC 62208 UL 508 A
  • Product Certifications
    TÜV UL
  • Device Composition
    1 body 1 cover 4 cover screw

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NSYTBP342916H on Powermatic Associates is $190.13. Order now.
