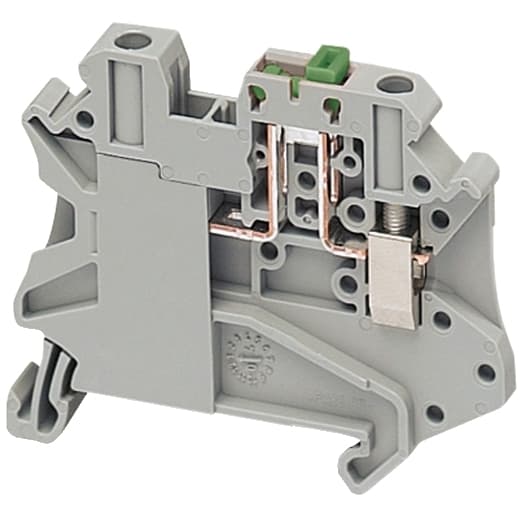

NSYTRV42STAR Schneider Electric Industrial Automation Components

Product Details

• Product Name
  Linergy TR
• Mounting Mode
  Clip-on
• Terminal Block Type
  Blade disconnect
• Height
  1.93 in (49.1 mm)
• Flame Retardance
  V0 0.03 in (0.8 mm) UL 94
• Product Or Component Type
  Terminal block
• Width
  0.24 in (6.2 mm)
• Material
  Polyamide 6/6 insulating case
• Terminal Block Level
  1
• Device Short Name
  TRV
• Number Of Connections
  2
• Provided Equipment
  test point
• Net Weight
  0.49 oz (13.8 g)
• Nominal Cross Section
  0.01 in² (4 mm²)
• Color
  Orange
• Tightening Torque
  5.31…7.08 lbf.in (0.6…0.8 N.m)
• Range
  Linergy
• Quantity Per Set
  Set of 50
• Wire Stripping Length
  0.35 in (9 mm)
• Length
  2.28 in (57.8 mm)
Number Of Measurement Input
2
Connection Position
Sideways
Dielectric Constant
3.7 at 1 MHz
Product Compatibility
Spacial enclosures
Range Compatibility
Prisma G Prisma P Prisma PH Prisma Pack Spacial Kaedra Pragma TeSys
Creep Resistance
500 CTI (> 400 kB) IEC 60093 500 CTI (> 400 kB) VDE 0303-T30
Cable Cross Section
0.00…0.01 in² (0.14…6 mm²), flexible without cable end 0.00…0.01 in² (0.14…6 mm²), solid
Connections - Terminals
1 x screw terminal upstream 1 x screw terminal downstream
Dielectric Loss
0.01 at 1 MHz IEC 60250 0.01 at 1 MHz VDE 0303-T4
Surface Resistance
1000 GΩ IEC 60093 1000 GΩ VDE 0303-T30
Resistivity
10000 MΩ.m IEC 60093 10000 MΩ.m VDE 0303-T30
Tool Type
Connection screwdriver Disconnection screwdriver
Line Rated Current
20 A EN/IEC 60947-7-1 16 A CSA 16 A cURus
[Ue] Rated Operational Voltage
500 V EN/IEC 60947-7-1 600 V CSA 600 V cURus
