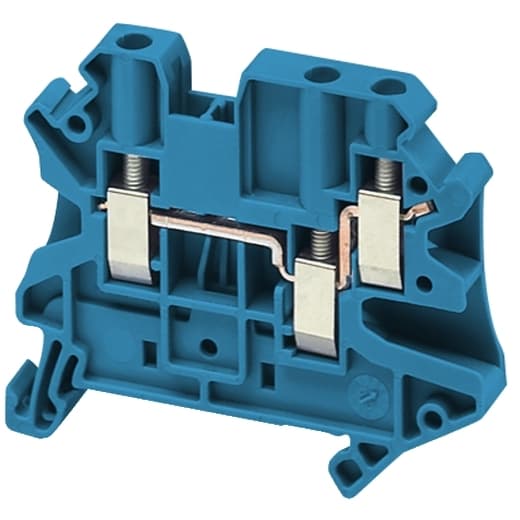

NSYTRV43BL Schneider Electric Industrial Automation Components

Product Details

• Device Short Name
  TRV
• Quantity Per Set
  Set of 50
• Number Of Measurement Input
  2
• Length
  2.28 in (57.8 mm)
• Product Compatibility
  Spacial enclosures
• Accessory / Separate Part Category
  Connection accessory
• Tightening Torque
  5.31…7.08 lbf.in (0.6…0.8 N.m)
• Product Or Component Type
  Terminal block
• Height
  1.87 in (47.5 mm)
• Terminal Block Type
  Passthrough
• Connection Position
  Sideways
• Product Name
  Linergy TR
• Range
  Linergy
• Width
  0.24 in (6.2 mm)
• Mounting Mode
  Clip-on
• Color
  Blue
• Dielectric Constant
  3.7 at 1 MHz
• Net Weight
  0.49 oz (14 g)
• Terminal Block Level
  1
• Number Of Connections
  3
Nominal Cross Section
0.01 in² (4 mm²)
Wire Stripping Length
0.35 in (9 mm)
Flame Retardance
V0 0.03 in (0.8 mm) UL 94
Dielectric Loss
0.01 at 1 MHz IEC 60250 0.01 at 1 MHz VDE 0303-T4
Connections - Terminals
1 x screw terminal upstream M3) 2 x screw terminal downstream M3)
Creep Resistance
500 CTI (> 400 kB) IEC 60093 500 CTI (> 400 kB) VDE 0303-T30
Surface Resistance
1000 GΩ IEC 60093 1000 GΩ VDE 0303-T30
Resistivity
10000 MΩ.m IEC 60093 10000 MΩ.m VDE 0303-T30
Tool Type
Connection screwdriver Disconnection screwdriver
Line Rated Current
32 A EN/IEC 60947-7-1 30 A cURus 29 A ATEX Exe II Ex II 2 GD
[Ue] Rated Operational Voltage
500 V EN/IEC 60947-7-1 352 V ATEX Exe II Ex II 2 GD 150 V cURus
Material
Polyamide 6/6 insulating case Copper alloy connector and screw Copper alloy commoning link Chromium-nickel steel spring
Cable Cross Section
0.00…0.01 in² (0.14…6 mm²), solid with cable end 0.00…0.01 in² (0.2…4 mm²), flexible with cable end 0.00…0.01 in² (0.14…6 mm²), flexible without cable end 0.00…0.01 in² (0.14…6 mm²), solid without cable end
Range Compatibility
Prisma G Prisma P Prisma PH Prisma Pack Spacial Kaedra Pragma TeSys
