QO130PL5393 Schneider Electric Industrial Automation Components

QO130PL5393 on Powermatic Associates
Schneider Electric

Part#:QO130PL5393

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

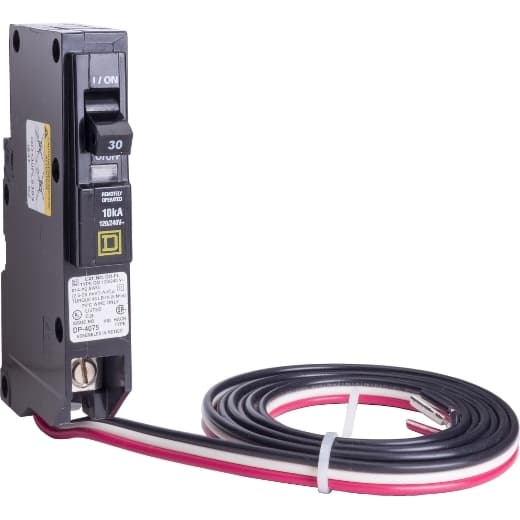

Square D by Schneider Electric QO130PL5393 is a Powerlink (PL) Miniature Circuit Breaker (MCB) designed for remote operation and control. It features a plug-in mounting mode and a plug-in connection type, facilitating easy installation. This MCB is rated for a current of 30A and can accommodate a voltage range of 120 V to 240 V AC. It is compatible with a wire cross-section of 12-2AWG for one aluminum cable and is equipped with box lugs terminals. The QO130PL5393 has a single pole configuration and offers a short circuit breaking rating of 10kA at 240Vac.

Product Details

  • Number Of Poles
    1P
  • Voltage Rating
    120/240 V AC
  • Depth
    2.91 in (73.91 mm)
  • Ratings
    HACR rated
  • Height
    4.55 in (115.57 mm)
  • Electrical Connection
    Box lugs
  • Tightening Torque
    40.71 lbf.in (4.6 N.m)
  • Range
    QO
  • Interrupt Rating
    10 kA 120/240 V AC 50/60 Hz
  • Mounting Type
    Plug-in
  • Width
    0.75 in (19.05 mm)
  • Current Rating
    30 A
  • Provided Equipment
    60 in (1524.00 mm) lead
  • Product
    Circuit breaker
  • Number Of Panel Spaces
    1
  • Circuit Breaker Type
    Standard
  • Wire Size
    AWG 12...AWG 2 aluminium AWG 14...AWG 2 copper

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QO130PL5393 on Powermatic Associates is $251.00. Order now.
