Product description

Schneider Electric M9F52202 is a Miniature Circuit Breaker (MCB) within the C60BPR sub-range, designed with a 2-pole configuration and a rated current of 2A. It features a rated insulation voltage (Ui) of 500 V and a rated impulse voltage (Uimp) of 6 kV. The MCB offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 125Vdc. It supports a rated voltage (AC) for phase-to-phase connections up to 440 V and protects 2 poles with a C tripping curve.

Product Details

  • Contact Position Indicator
    Yes
  • Height
    5.00 in (127 mm)
  • Tightening Torque
    17.70 lbf.in (2 N.m) top or bottom
  • Poles Description
    2P
  • Mounting Support
    DIN rail
  • Product Name
    Multi 9 C60
  • Suitability For Isolation
    Yes EN/IEC 60947-2
  • Device Short Name
    C60BPR
  • Range
    Multi 9
  • Device Application
    Distribution
  • [Uimp] Rated Impulse Withstand Voltage
    6 kVEN/IEC 60947-2
  • Number Of Protected Poles
    2
  • Width
    1.42 in (36 mm)
  • Product Or Component Type
    Miniature circuit-breaker
  • [Ui] Rated Insulation Voltage
    500 V AC EN/IEC 60947-2
  • Line Rated Current
    2 A 77 °F (25 °C) EN/IEC 60947-2
  • Curve Code
    C
  • Color
    Gray
  • Depth
    2.83 in (72 mm)
  • Trip Unit Technology
    Thermal-magnetic
  • Mounting Mode
    Clip-on
  • Electrical Durability
    10000 cycles
  • Mechanical Durability
    20000 cycles
  • Earth-Leakage Protection
    Without
  • Control Type
    Toggle
  • Connections - Terminals
    Ring terminal top or bottom)
  • Local Signalling
    ON/OFF indication
  • Provision For Padlocking
    Padlockable
  • 9 Mm Pitches
    4
  • Magnetic Tripping Limit
    8.5 x In +/- 20 % AC 12 x In +/- 20 % DC
  • Network Type
    DC AC
  • [Ue] Rated Operational Voltage
    240 V AC 50/60 Hz 415 V AC 50/60 Hz 440 V AC 50/60 Hz
  • Product Certifications
    IEC CCC CSA UL
  • Standards
    EN/IEC 60947-2 GB 14048.2 UL 489 CSA C22.2 No 5
  • [Ics] Rated Service Breaking Capacity
    4.5 kA 75 % GB 14048.2 - 240 V AC 7.5 kA 75 % GB 14048.2 15 kA 75 % GB 14048.2 4.5 kA 75 % EN/IEC 60947-2 - 125 V DC 7.5 kA 75 % EN/IEC 60947-2 - 440 V AC 15 kA 75 % EN/IEC 60947-2 - 415 V AC
  • Breaking Capacity
    6 kA Icu 440 V AC EN/IEC 60947-2 10 kA Icu 415 V AC EN/IEC 60947-2 20 kA Icu 240 V AC EN/IEC 60947-2 6 kA Icu 440 V AC GB 14048.2 10 kA Icu 415 V AC GB 14048.2 20 kA Icu 240 V AC GB 14048.2 14 kA AIR 240 V AC UL 489 10 k

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M9F52202 on Powermatic Associates is $282.00. Order now.

M9F52202 Related Documents

Catalog-1631032005552.pdfProduct Datasheet-1631032005550.pdf

Similar products from: Schneider Electric Industrial Automation Components

M9A26969 on Powermatic Associates

M9A26969

Schneider Electric

Schneider Electric M9A26969 is a tripping coil designed for undervoltage trip coil release (MNx) applications. It belongs to the sub-range of tripping coils and is engineered for DIN rail mounting. This part operates with a control voltage of 230Vac AC.

0 in stock
XB7EV04MP on Powermatic Associates

XB7EV04MP

Schneider Electric

Schneider Electric XB7EV04MP is a monolithic pilot light designed for signaling applications, featuring an integral LED for illumination. This component, part of the XB7 sub-range, is constructed with a plastic body and has a round shape. It offers a rated impulse voltage (Uimp) of 6 kV and is protected to a degree of IP65, NEMA 4, and NEMA 12, ensuring its suitability for various industrial environments. The pilot light operates on a network frequency of 50/60 Hz and requires a supply voltage of 230 V AC. It has a diameter of 22 mm, with net dimensions of 29 mm in height, 54 mm in depth, and 29 mm in width. The light emitted by the LED is red, and it features screw-clamp type terminals for connection.

0 in stock
MG17416 on Powermatic Associates

MG17416

Schneider Electric

Schneider Electric MG17416 is a Miniature Circuit Breaker (MCB) designed as a supplementary protector within the C60 UL1077 sub-range. It features a rated current of 15A and operates on a single pole (1 Pole(s)) configuration. The rated operating voltage (Ue) for this MCB is 277 V. It offers a short circuit breaking rating of 10kA AIR at 240Vac, 5kA AIR at 277Vac, and 10kA AIR at 65Vdc, with protection extended to 1 Pole(s). The tripping curve for this device is classified as type C.

0 in stock
BDL36070 on Powermatic Associates

BDL36070

Schneider Electric

Square D by Schneider Electric BDL36070 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDL sub-range, featuring a PowerPact B-Frame 100 TMD 3P 70A design for 600Y/347Vac with a 14kA breaking capacity and 80% rated Everlink (Creep compensating) lugs on both line and load sides. It has a rated impulse voltage (Uimp) of 8 kV and offers a degree of protection of IP40. The rated current is 70A, with a rated voltage (AC) of 600Vac 600Y/347Vac. It boasts a mechanical durability of 20,000 operations at no load and can be mounted on a DIN rail or as an individual unit on a plate. This 3-pole (3P) circuit breaker has dimensions of 137 mm in height, 80 mm in depth, and 81 mm in width. It falls under utilisation category A and features over-current protection fixed at 70A, short-circuit hold current fixed at 640A, and short-circuit trip current fixed at 960A. The rated voltage (DC) is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 525 V. It provides thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 70 AT and an electrical durability of 10,000 operations with load at 440Vac. The frame current rating is 100 AF, and it operates via a toggle (manual) mechanism. The short circuit breaking rating varies by voltage, with 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, and 14kA at 600Y/347Vac according to UL489 standards. The trip unit type is thermal-magnetic (fixed) without a display.

0 in stock
NSYTBP16128T on Powermatic Associates

NSYTBP16128T

Schneider Electric

Schneider Electric - NSYTBP16128T

25 in stock
AL600LS52K3 on Powermatic Associates

AL600LS52K3

Schneider Electric

Square D by Schneider Electric AL600LS52K3 is an aluminium mechanical lugs kit designed for use with both aluminium or copper wire. It is compatible with 3-pole (3P) devices and supports a rated current range from 400A to 600A. This lug kit is suitable for cables with a cross-section ranging from #2/0AWG to 500kcmil CuAl, accommodating a broad spectrum of installation requirements.

4 in stock

This item can ship within 24h!

Manufacturer warranty

M9F52202 Schneider Electric

$282.00

Your price can be lower.
Log in or Create account to check your discount

Stock:

1

Select Qty:

$282.00

$282.00 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare M9F52202 with other Industrial Automation Components products

Contact Position Indicato...

Height

Tightening Torque

Poles Description

Mounting Support

Product Name

Suitability For Isolation

Device Short Name

Range

Device Application

Selected product

M9F52202
1 in stock
M9F52202
Schneider Electric

Schneider Electric M9F52202 is a Miniature Circuit Breaker (MCB) within the C60BPR sub-range, design...

Contact Position IndicatorYes

Height5.00 in (127 mm)

Tightening Torque17.70 lbf.in (2 N.m) top or ...

Poles Description2P

Mounting SupportDIN rail

Product NameMulti 9 C60

Suitability For IsolationYes EN/IEC 60947-2

Device Short NameC60BPR

RangeMulti 9

Device ApplicationDistribution

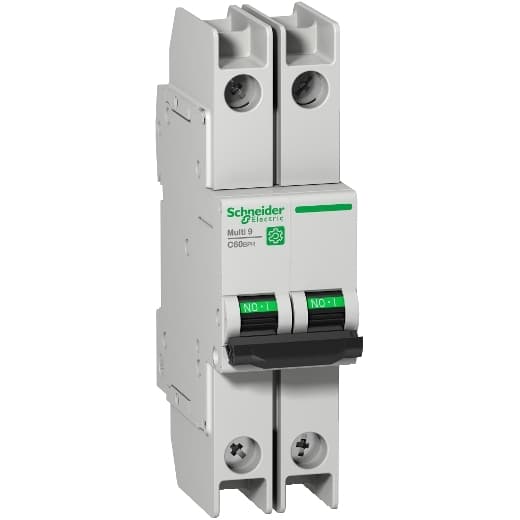

M9F53202
