QO330ML2 Schneider Electric Industrial Automation Components

QO330ML2 on Powermatic Associates
Schneider Electric

Part#:QO330ML2

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

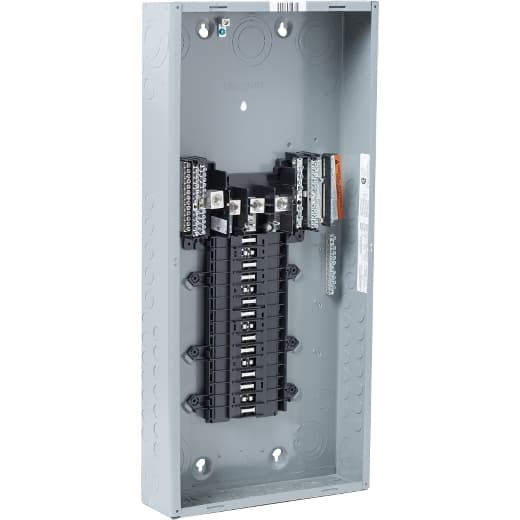

Square D by Schneider Electric QO330ML2 is a load center designed for a rated current of 200A with a connection type of lugs. It features dimensions of H758mm x W362mm x D95mm (H29.84" x W14.25" x D3.74") and offers 30 spaces for single pole circuits. This load center is built with a welded sheet steel enclosure, ensuring compatibility with NEMA 1 standards for protection. It operates at a rated voltage of 120Vac/240Vac, accommodating up to 30 single pole circuits within its structure.

Product Details

  • Maximum Number Of Tandem Breakers
    0
  • Voltage Rating
    120/240 V AC
  • Wire Size
    AWG 4...250 kcmil aluminium/copper
  • Load Center Type
    Main lugs
  • Number Of Spaces
    30
  • Enclosure Material
    Welded sheet steel
  • Wiring Configuration
    4-wire
  • Cover Type
    Order separately
  • Depth
    3.74 in (95 mm)
  • Product Type
    Load Center
  • Ground Bar
    Grounding bar (ordered separately)
  • Maximum Number Of Single Pole Circuits
    30
  • Marketing Trade Name
    QO
  • Box Number
    10
  • Width
    14.25 in (362 mm)
  • Rated Current
    200 A
  • Number Of Phases
    3 phase
  • Height
    29.84 in (758 mm)
  • Electrical Connection
    Lugs
  • Tightening Torque
    Main lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper Cover 20 lb.in

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QO330ML2 on Powermatic Associates is $620.00. Order now.
