Part#:QOB320

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

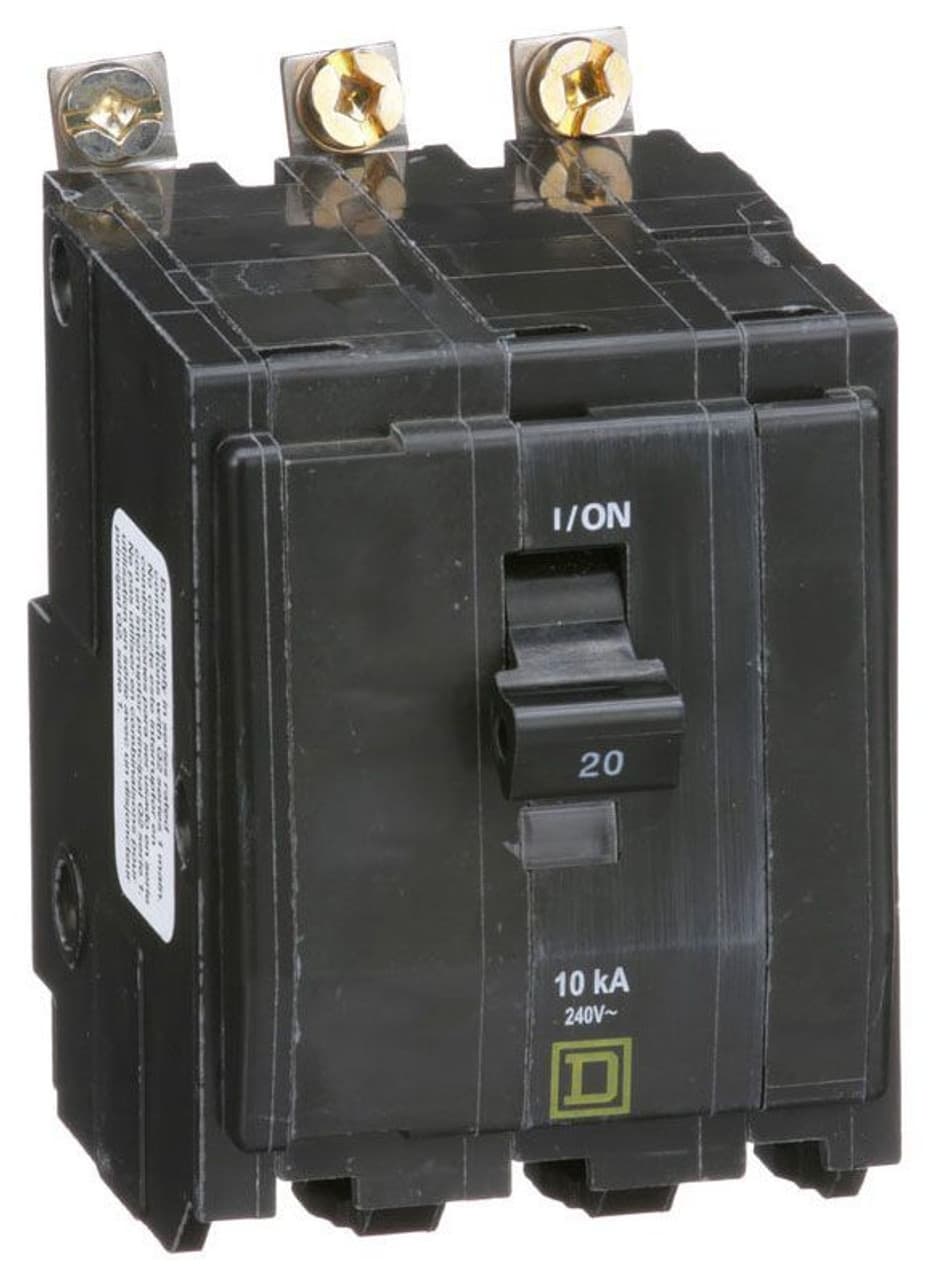

Square D by Schneider Electric QOB320 is a Miniature Circuit Breaker (MCB) designed for bolt-on mounting. It features a rated current of 20A and accommodates a bolt-on connection type. This MCB is compatible with a voltage rating of 48Vdc and 120/240Vac, supporting a cross-section of 14-8AWG for 1 cable Al/Cu. It is a 3 Pole device with a short circuit breaking rating of 10kA at 240Vac and 5kA at 48Vdc. The terminals are of the press plate type.

Product Details

  • Height
    3 in (76.20 mm)
  • Circuit Breaker Type
    Standard
  • Current Rating
    20 A
  • Wire Size
    AWG 14...AWG 8 copper or aluminium
  • Depth
    2.91 in (73.91 mm)
  • Product
    Miniature circuit-breaker
  • Ratings
    HACR rated
  • Width
    2.25 in (57.15 mm)
  • Number Of Poles
    3P
  • Number Of Panel Spaces
    3
  • Mounting Type
    Bolt-on
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.02…0.04 in² (10…25 mm²) (AWG 8...AWG 2)
  • Electrical Connection
    Pressure plate
  • Range
    QO
  • Shipping Length:
    7.00 In.
  • Shipping Height:
    3.00 In.
  • Shipping Weight:
    2.50 lbs.
  • TS PIK:
    124024414
  • UPC:
    78590141709
  • Shipping Width:
    4.00 In.
  • Voltage Rating
    120/240 V AC 240 V AC 120 V AC 48 V DC
  • Interrupt Rating
    10 kA 120/240 V AC 50/60 Hz 10 kA 240 V AC 50/60 Hz 10 kA 120 V AC 50/60 Hz 5 kA 48 V DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
