QOB320VH Schneider Electric Industrial Automation Components

QOB320VH on Powermatic Associates
Schneider Electric

Part#:QOB320VH

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

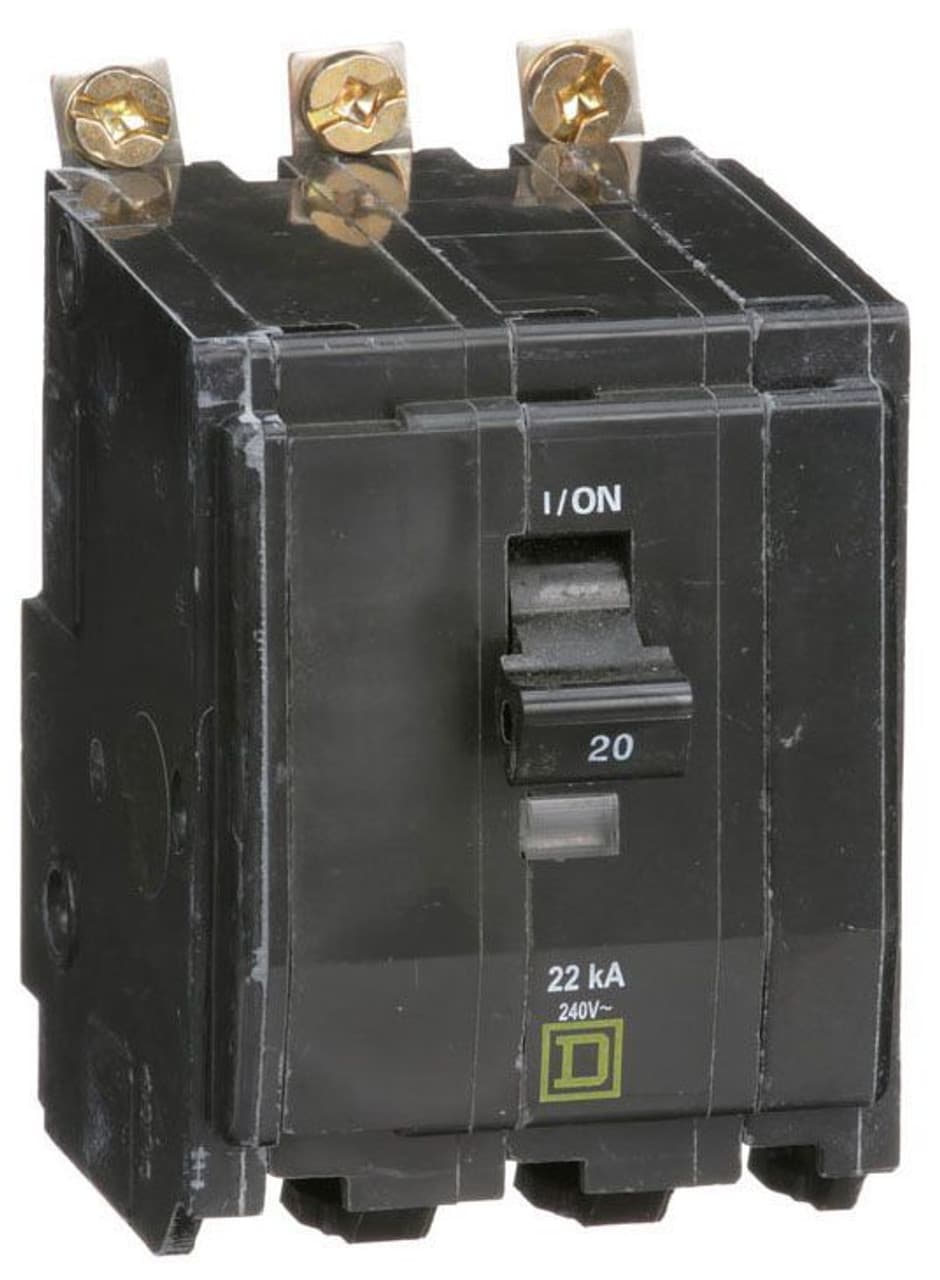

Square D by Schneider Electric QOB320VH is a Miniature Circuit Breaker (MCB) designed for bolt-on mounting. It features a rated current of 20A and a bolt-on connection type. This MCB operates at a rated voltage of 120V to 240V AC and accommodates a cross-section of 14-8AWG for 1 cable Al/Cu. It is a 3 Pole circuit breaker with a short circuit breaking rating of 22kA at 240Vac. The terminals are of the press plate type.

Product Details

  • Number Of Poles
    3P
  • Range
    QO
  • Width
    2.25 in (57.15 mm)
  • Current Rating
    20 A
  • Number Of Panel Spaces
    3
  • Mounting Type
    Bolt-on
  • Wire Size
    AWG 14...AWG 8 copper or aluminium
  • Circuit Breaker Type
    Standard
  • Product
    Miniature circuit-breaker
  • Height
    3 in (76.20 mm)
  • Electrical Connection
    Pressure plate
  • Ratings
    HACR rated
  • Depth
    2.91 in (73.91 mm)
  • Tightening Torque
    40.71 lbf.in (4.6 N.m)
  • Shipping Weight:
    2.50 lbs.
  • Shipping Length:
    7.00 In.
  • Shipping Width:
    4.00 In.
  • TS PIK:
    109595029
  • UPC:
    78590137196
  • Shipping Height:
    4.00 In.
  • Interrupt Rating
    22 kA 120/240 V AC 50/60 Hz 22 kA 240 V AC 50/60 Hz 22 kA 120 V AC 50/60 Hz
  • Voltage Rating
    120/240 V AC 240 V AC 120 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
