QOU220H5283 Schneider Electric Industrial Automation Components

QOU220H5283 on Powermatic Associates
Schneider Electric

Part#:QOU220H5283

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

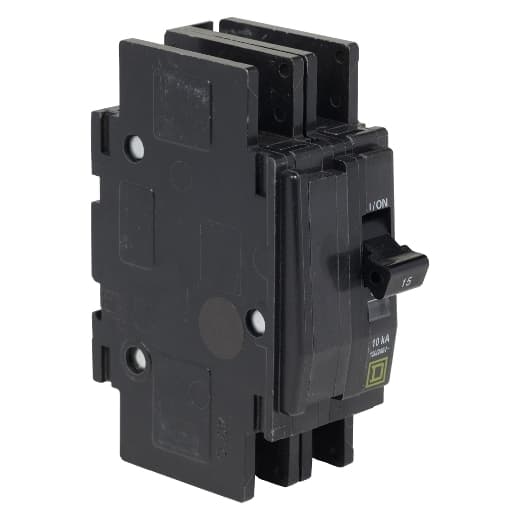

Square D by Schneider Electric QOU220H5283 is a unit-mount Miniature Circuit Breaker (MCB) designed for securing electrical circuits. It features a 2-pole configuration and is capable of handling a rated current of 20A. This MCB is designed for 240V AC systems with a short circuit breaking rating of 10kA at 240Vac and 5kA at 48Vdc. It offers ring tongue connections for both load and line sides, ensuring a secure and reliable connection. The terminals are also of the ring tongue type, facilitating straightforward installation and maintenance.

Product Details

  • Product Or Component Type
    Miniature circuit-breaker
  • Circuit Breaker Type
    Standard
  • Line Rated Current
    20 A
  • AWG Gauge
    AWG 14...AWG 2 aluminium/copper
  • Range Of Product
    QOU
  • [Ue] Rated Operational Voltage
    240 V AC
  • Depth
    2.95 in (74.93 mm)
  • Circuit Breaker Application
    HACR and Switching Duty rated
  • Width
    1.5 in (38.10 mm)
  • Mounting Mode
    Unit mount
  • Tightening Torque
    45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
  • Height
    4.05 in (102.87 mm)
  • Electrical Connection
    ring tongue, line side ring tongue, load side

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QOU220H5283 on Powermatic Associates is $252.00. Order now.
