QOU215VH Schneider Electric Industrial Automation Components

QOU215VH on Powermatic Associates
Schneider Electric

Part#:QOU215VH

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

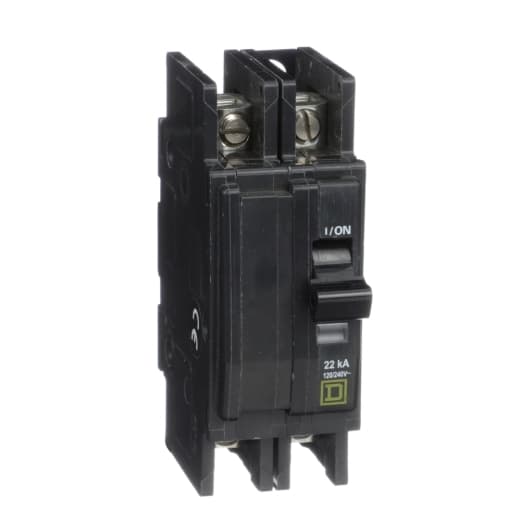

Square D by Schneider Electric QOU215VH is a unit-mount miniature circuit breaker (MCB) designed for securing electrical circuits. It features a 2-pole configuration and is capable of handling a rated current of 15A. This MCB is suitable for use with a rated voltage of 120V to 240V AC and has a short circuit breaking rating of 22kA at 240Vac and 5kA at 48Vdc. It accommodates wire sizes from 14 to 2 AWG for both aluminum and copper cables, utilizing slotted box lugs connections for both the load and line sides. The terminals are designed as box lugs, facilitating straightforward installation and maintenance.

Product Details

  • AWG Gauge
    AWG 14...AWG 2 aluminium/copper
  • Mounting Mode
    Unit mount
  • [Ue] Rated Operational Voltage
    120/240 V AC
  • Circuit Breaker Type
    Standard
  • Depth
    2.95 in (74.93 mm)
  • Tightening Torque
    45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
  • Range Of Product
    QOU
  • Width
    1.5 in (38.10 mm)
  • Height
    4.05 in (102.87 mm)
  • Product Or Component Type
    Miniature circuit-breaker
  • Line Rated Current
    15 A
  • Electrical Connection
    Slotted box lugs, line side Slotted box lugs, load side

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QOU215VH on Powermatic Associates is $204.12. Order now.

QOU215VH Related Documents

Instruction Sheet-1631030922925.pdfProduct Datasheet-1631030922930.pdfCatalog-1631030922928.pdf
