QOU2501021 Schneider Electric Industrial Automation Components

QOU2501021 on Powermatic Associates
Schneider Electric

Part#:QOU2501021

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

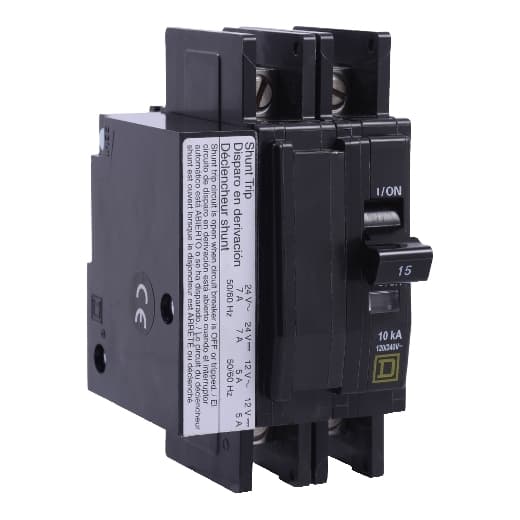

Square D by Schneider Electric QOU2501021 is a Miniature Circuit Breaker (MCB) designed for unit mount installation. It features a shunt trip coil, facilitating remote tripping of the breaker. This MCB is rated for a current of 50A and accommodates slotted box lugs connections on both the load and line sides. It is compatible with a cross-section of 14-2AWG for 1 cable Al/Cu. The QOU2501021 is a 2 Pole circuit breaker, suitable for systems with rated voltages of 48Vdc and 120V/240V AC. It operates within a control voltage range of 120Vac to 208Vac. The short circuit breaking rating stands at 10kA for 240Vac and 5kA for 48Vdc, with box lugs as the type of terminals.

Product Details

  • Line Rated Current
    50 A
  • Tightening Torque
    45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
  • AWG Gauge
    AWG 14...AWG 2 aluminium/copper
  • Circuit Breaker Type
    Standard
  • Circuit Breaker Application
    HACR and Switching Duty rated
  • Height
    4.05 in (102.87 mm)
  • Width
    2.25 in (57.15 mm)
  • Product Or Component Type
    Miniature circuit-breaker
  • Mounting Mode
    Unit mount
  • Range Of Product
    QOU
  • Depth
    2.95 in (74.93 mm)
  • Electrical Connection
    Slotted box lugs, line side Slotted box lugs, load side
  • [Ue] Rated Operational Voltage
    120/240 V AC 120 V AC 48 V DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QOU2501021 on Powermatic Associates is $276.00. Order now.

QOU2501021 Related Documents

Product Datasheet-1631031150237.pdfCatalog-1631031150266.pdfInstruction Sheet-1631031150275.pdf
