QU816D400SL Schneider Electric Industrial Automation Components

QU816D400SL on Powermatic Associates
Schneider Electric

Part#:QU816D400SL

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

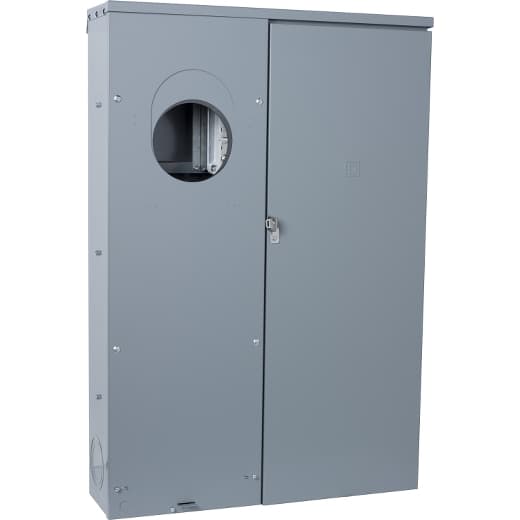

Square D by Schneider Electric QU816D400SL is a meter center main unit designed for surface mounting. It features a single ringless meter socket equipped with a class 320 lever bypass. This unit is rated for a current of 400A and offers a connection type that includes feed-thru lugs for ground and studs for the line. The dimensions of the QU816D400SL are H1092mm x W718mm x D200mm (H43" x W28.25" x D7.87"), and it provides 8 spaces for accommodating up to 16 single pole circuits or 8 tandem breakers.

Product Details

  • Number Of Circuits
    16
  • Disconnect
    Service disconnect (factory installed)
  • Short-Circuit Current
    25 kA
  • Bypass Type
    Class 320 lever bypass
  • Width
    28.25 in (717.55 mm)
  • Line Rated Current
    400 A
  • Branch Breaker Rating
    200 A
  • Mounting
    Surface
  • Network Number Of Phases
    1
  • Meter Socket Type
    Ringless
  • Number Of Spaces
    8
  • Product Or Component Type
    Meter Mains
  • Service Feed Location
    UG
  • Hub Type
    A-L
  • Number Of Tandem Breakers
    8
  • Height
    43.00 in (1092.20 mm)
  • Range Of Product
    QO
  • Main Breaker Rating
    200 A
  • Depth
    7.87 in (199.90 mm)
  • Wire Size
    AWG 4...250 kcmil aluminium)service ground AWG 4...250 kcmil copper)service ground
  • Electrical Connection
    Studs line side Feed-thru lugs service ground

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QU816D400SL on Powermatic Associates is $4,065.00. Order now.
