UHT2R1421C Schneider Electric Industrial Automation Components

UHT2R1421C on Powermatic Associates
Schneider Electric

Part#:UHT2R1421C

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

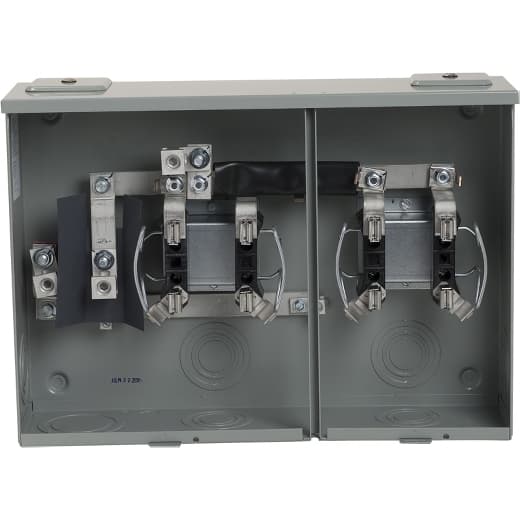

Square D by Schneider Electric UHT2R1421C is a meter center main unit designed for surface mounting. It features a single ringless meter socket equipped with 4 jaws, lacking a jaw release mechanism, and includes a horn bypass. The enclosure is made of steel, ensuring durability. Connection to the unit is facilitated through studs. It is rated for a current of 100A and can accommodate wire sizes ranging from 6AWG to 350kcmil for lugs and 8AWG to 2/0AWG. The UHT2R1421C is designed to operate within a single-phase (1PH-3W) network and can handle voltages up to 600Vac. It is protected by a NEMA 3R enclosure, making it suitable for outdoor applications where some level of protection against weather is required.

Product Details

  • Phase
    1 phase
  • Enclosure Material
    Steel
  • Wiring Configuration
    3-wire
  • Product Or Component Type
    Meter Socket
  • Bypass Type
    Horn bypass
  • Device Mounting
    Surface
  • Hub Type
    A ACP closing plate
  • Number Of Jaws
    4 without jaw release
  • Meter Socket Type
    Ringless
  • Electrical Connection
    Studs 0.375" hex
  • Meter Socket Rated Current
    100 A
  • [Ue] Rated Operational Voltage
    <= 600 V AC
  • AWG Gauge
    AWG 6...250 kcmilline side AWG 8...AWG 2/0service ground
  • Service Feed Location
    OH UG

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of UHT2R1421C on Powermatic Associates is $371.00. Order now.
