XAPA2100 Schneider Electric Industrial Automation Components

XAPA2100 on Powermatic Associates
Schneider Electric

Part#:XAPA2100

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

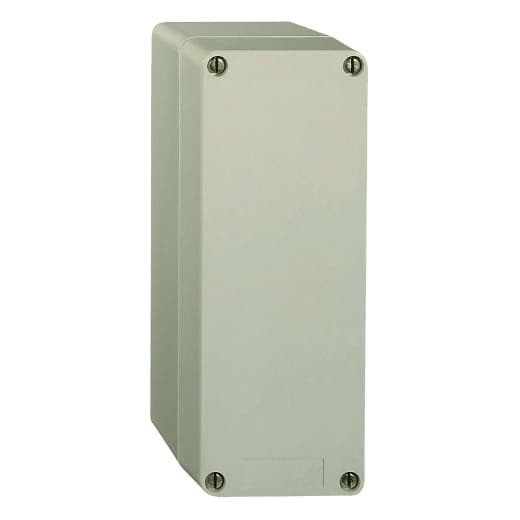

Schneider Electric XAPA2100 is a control station within the XAP sub-range, featuring an insulated, undrilled enclosure made from glass-reinforced polyester. This rectangular control station offers a high degree of protection with ratings of IP69, IP65, and IP69K, suitable for flush mounting. It measures 226 mm in height, 87 mm in depth, and 85 mm in width. The XAPA2100 is designed to withstand ambient air temperatures for storage ranging from -40 to +70 °C, with operational temperature limits also set between -40 °C and 70 °C.

Product Details

  • Colour Of Cover
    Grey
  • Colour Of Base Of Enclosure
    Grey
  • Device Short Name
    XAPA
  • Cable Entry
    Undrilled
  • Number Of Cut-Out
    Undrilled
  • Net Weight
    1.32 lb(US) (0.6 kg)
  • Range Of Product
    Harmony XAP
  • Usable Depth
    3.27 in (83 mm)
  • Material
    Glass reinforced polyester
  • Product Front Plate Size
    85 x 226 mm
  • Product Or Component Type
    Empty control station without hinges
  • Device Mounting
    Flush
  • Flame Retardance
    M3 conforming to CSTB VO conforming to UL 94
  • IP Degree Of Protection
    IP65 IEC 60529 IP69 NF C 20-010 IP69K
  • Resistance To Chemical Agents
    High resistant to acids High resistant to all solvents High resistant to bases High resistant to diesel High resistant to mineral salts High resistant to oils and greases High resistant to petrol High resistant to sea wa

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of XAPA2100 on Powermatic Associates is $180.00. Order now.

XAPA2100 Related Documents

Product Datasheet-1631028743957.pdfInstruction Sheet-1631028743953.pdfCatalog-1631028743948.pdf
