Schneider Electric

Part#:XVBL4M8

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

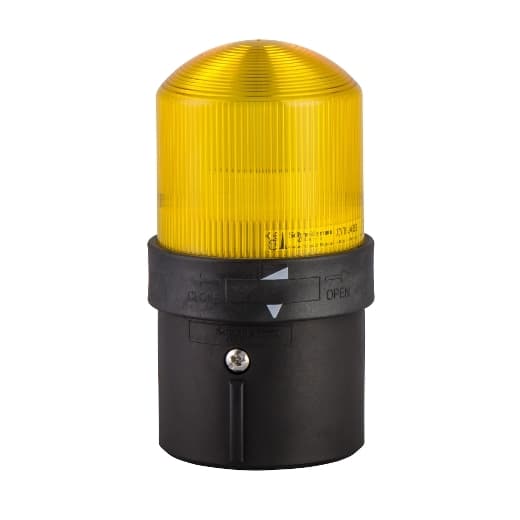

Schneider Electric XVBL4M8 is a modular tower light from the XVB sub-range, designed as a cylindrical illuminated beacon with an integral flashing light signaling function in a 1-tier configuration. It features a degree of protection rated at IP66 and IP65 when mounted on the fixing base XVBZ0, ensuring durability in various environmental conditions. The control and supply voltage range from 48 to 230 Vac, accommodating a wide array of electrical systems. With a diameter of 70 mm, this unit emits a yellow light, making it suitable for a variety of signaling applications.

Product Details

  • Signalling Type
    Flashing
  • [Uimp] Rated Impulse Withstand Voltage
    4 kV IEC 60947-1
  • Nominal Voltage Limit
    0.85...1.1 Un IEC 60947-5-1
  • CAD Overall Width
    2.76 in (70 mm)
  • Mounting Diameter
    2.76 in (70 mm)
  • Range Of Product
    Harmony XVB Universal
  • Maximum Power Dissipation In W
    7 W
  • Flashing Frequency
    1 Hz
  • Product Or Component Type
    Complete beacon
  • CAD Overall Depth
    2.76 in (70 mm)
  • [Us] Rated Supply Voltage
    48...230 V AC
  • Net Weight
    0.62 lb(US) (0.28 kg)
  • Component Name
    XVBL
  • [Ui] Rated Insulation Voltage
    250 V IEC 60947-1
  • Light Source
    Bulb not included, yellow
  • Connections - Terminals
    Screw clamp terminals, <= 1 x 1.5 mm² with cable end
  • CAD Overall Height
    5.47 in (139 mm)
  • Material
    Glass reinforced polyamide base unit Polycarbonate illuminated unit
  • Terminals Description ISO N°1
    (COM-1)PW (GND)GROUND
  • Bulb Type
    Incandescent BA 15d Protected LED
  • Beacon Or Indicator Bank Unit Type
    Base unit direct or tube fixing Illuminated unit

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of XVBL4M8 on Powermatic Associates is $194.00. Order now.
