BI2-G08-RN6X-H1341 Turck Industrial Automation Components

Name: BI2-G08-RN6X-H1341
Brand: Turck

BI2-G08-RN6X-H1341 on Powermatic Associates

Part#:BI2-G08-RN6X-H1341

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Discontinued

Product description

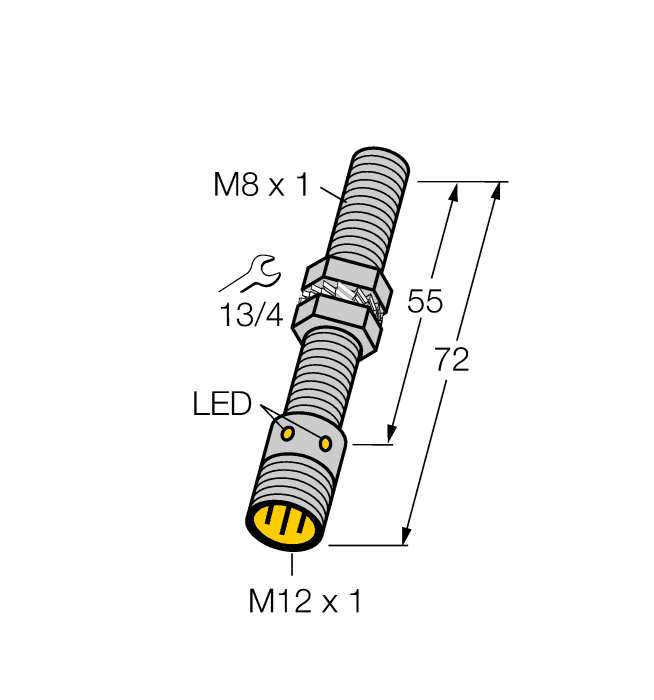

BI2-G08-RN6X-H1341 Turck - BI2-G08-RN6X-H1341 Inductive Sensor

Product Details

Construction size
M8 x 1
Operating voltage
10…30 VDC
Electrical connection
Connector, M12 × 1
Output function
NC contact, NPN
Rated switching distance
2 mm
Ambient temperature
-25…+70 °C
Housing material
Metal, 1.4404 (AISI 316L)
Mounting
Flush
Protection class
IP67
Design
Threaded barrel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

Inductive Sensor, Rated switching distance 2 mm, Flush, Threaded barrel, M8 x 1, Stainless steel, 1.4404, DC 3-wire, 10…30 VDC, NC contact, NPN output, M12 x 1 male connector
