BI5U-M18-AP6X-H1141 Turck Inductive Sensors

Turck BI5U-M18-AP6X-H1141 BI5U-M18-AP6X-H1141 Inductive Sensor
Turck

Part#:BI5U-M18-AP6X-H1141

Manufacturer:Turck

Alt. Part#:1635140

Product Lifecycle:Active

Get a quick Quote!

BI5U-M18-AP6X-H1141 Inductive Sensor

About the manufacturer: Turck is one of the manufacturers that offers Inductive Sensors that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the BI5U-M18-AP6X-H1141 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    47 g
  • Country Of Origin
    DEU
  • HTS Code
    8536507000
  • Output function
    NO contact, PNP
  • Special features
    uprox+, Factor 1, Resistant to magnetic fields
  • Protection class
    IP68
  • Construction size
    M18 x 1
  • Operating voltage
    10…30 VDC
  • Housing material
    Metal, CuZn, Chrome-plated
  • Mounting
    Flush
  • Design
    Threaded barrel
  • Rated switching distance
    5 mm
  • Ambient temperature
    -30…+85 °C
  • Electrical connection
    Connector, M12 × 1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


BI5U-M18-AP6X-H1141 Description

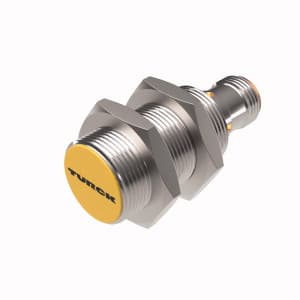

Turck BI5U-M18-AP6X-H1141 is an inductive proximity sensor belonging to the BI...-M18 series, designed for embeddable applications. It operates with a supply voltage range of 10-30Vdc, including nominal 12Vdc and 24Vdc, and features a chrome-plated brass housing with a PBT (Polybutylene Terephthalate) sensing face. This sensor is equipped with a 4-pin M12 Eurofast QD male connector for connectivity. It has an M18 partially threaded barrel shape and offers a degree of protection rated at IP68. The maximum switching frequency is 1.5kHz, and it can operate within an ambient air temperature range of -30°C to +85°C. The response time is 8ms, and it includes 1 x digital output (10-30Vdc; PNP; 200mA max.). The no-load current consumption is 25mA, with a sensing distance of 5mm. Protection functions include short-circuit (pulsed), overload, and reverse polarity protection. The control circuit is rated at 200mA, and the operating mode is NO (Normally Open).



Related documents BI5U-M18-AP6X-H1141 Specs
