BIM-UNT-AP6X-0.3-PSG3S Turck Industrial Automation Components
Part#:BIM-UNT-AP6X-0.3-PSG3S
Alt. Part#:4685722
Manufacturer:Turck
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

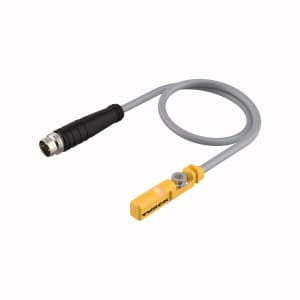

BIM-UNT-AP6X-0.3-PSG3S Turck - BIM-UNT-AP6X-0.3-PSG3S Magnetic Field Sensor, For Pneumatic Cylinders
Product Details
- Weight 14 g
- RoHS Yes
- HTS Code 8536507000
- Cable length (L) 0.30 m
- Cylindrical design Dovetail groove cylinder, T-groove cylinder, Round cylinder, Tie-rod cylinder
- Design Rectangular
- Operating voltage 10…30 VDC
- Housing material Plastic, PP

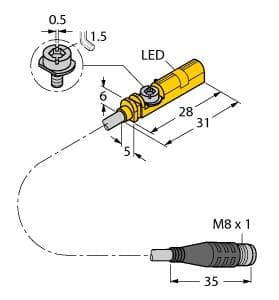

- Construction size 28 x 5 x 6 mm, UNT
- Electrical connection Cable with connector, Ø 8 mm
- Output function NO contact, PNP
- Ambient temperature -25…+70 °C
- Protection class IP68
- Country of Origin Switzerland
- Weight 14 grams
- Operating Voltage 10 volts, 30 volts
- Ambient Temperature -25 degrees celsius, 70 degrees celsius
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BIM-UNT-AP6X-0.3-PSG3S on Powermatic Associates is $129.00. Order now.
About the product
Magnetic Field Sensor, For Pneumatic Cylinders, Cable length (L) 0.3 m, For T-groove cylinders without mounting accessories, Optional accessories for mounting on other cylinder designs, One-hand mounting possible, Stable mounting, Magneto-resistive sensor, DC 3-wire, 10…30 VDC, NO contact, PNP output, Pigtail with male end, Ø 8 mm
BIM-UNT-AP6X-0.3-PSG3S Related Documents
Similar products from: Turck Industrial Automation Components
Manufacturer warranty
BIM-UNT-AP6X-0.3-PSG3S Turck
$129.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$129.00
$129.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare BIM-UNT-AP6X-0.3-PSG3S with other Industrial Automation Components products
Weight
RoHS
HTS Code
Cable length (L)
Cylindrical design
Design
Operating voltage
Housing material
Construction size
Electrical connection
Selected product
BIM-UNT-AP6X-0.3-PSG3S
Turck
BIM-UNT-AP6X-0.3-PSG3S Turck - BIM-UNT-AP6X-0.3-PSG3S Magnetic Field Sensor, For Pneumatic Cylinders
Weight14 g
RoHSYes
HTS Code8536507000
Cable length (L)0.30 m
Cylindrical designDovetail groove cylinder, T-...
DesignRectangular
Operating voltage10…30 VDC
Housing materialPlastic, PP
Construction size28 x 5 x 6 mm, UNT
Electrical connectionCable with connector, Ø 8 mm
NI10U-QP08-AP6X2
Turck
NI10U-QP08-AP6X2 Turck - NI10U-QP08-AP6X2 Inductive Sensor, With Extended Switching Distance
Weight34 g
RoHSYes
HTS Code8536507000
Cable length (L)2.0 m
Cylindrical design-
DesignRectangular
Operating voltage10…30 VDC
Housing materialPlastic, PP, Yellow
Construction size32 x 20 x 8 mm, QP08
Electrical connectionCable
NI3.5-Q5.5-RP6X-0.2-PSG3M
Turck
NI3.5-Q5.5-RP6X-0.2-PSG3M Turck - NI3.5-Q5.5-RP6X-0.2-PSG3M Inductive Sensor
Weight-
RoHSYes
HTS Code8536507000
Cable length (L)0.50 m
Cylindrical design-
DesignRectangular
Operating voltage10…30 VDC
Housing materialPlastic, PP-GF20
Construction size28 x 8 x 5.5 mm, Q5.5
Electrical connectionCable with connector, M8 × 1
About the manufacturer
Powermatic Associates is an authorized Turck distributor, committed to delivering top-tier industrial solutions that align with your operational requirements. Turck is a globally recognized provider of advanced automation technology, specializing in sensor, connectivity, and fieldbus technology. Their extensive product range includes robust sensors such as inductive, capacitive, photoelectric, and...
Recently viewed products
Relevant products
FAQ
What is the price of BIM-UNT-AP6X-0.3-PSG3S?
Purchase the BIM-UNT-AP6X-0.3-PSG3S from Powermatic Associates at the price of $129.00. Order today.
Out if stock but available for backorder.
BIM-UNT-AP6X-0.3-PSG3S Turck - BIM-UNT-AP6X-0.3-PSG3S Magnetic Field Sensor, For Pneumatic Cylinders
