Powermatic Associates Logo

NI3-EG08K-AP6X-0.2-PSG3M Turck Industrial Automation Components

NI3-EG08K-AP6X-0.2-PSG3M on Powermatic Associates
Turck

Part#:NI3-EG08K-AP6X-0.2-PSG3M

Alt. Part#:4669610

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

NI3-EG08K-AP6X-0.2-PSG3M Turck - NI3-EG08K-AP6X-0.2-PSG3M Inductive Sensor

Product Details

  • Weight
    20 g
  • RoHS
    Yes
  • Country Of Origin
    USA
  • HTS Code
    8536507000
  • Construction size
    M8 x 1
  • Cable length (L)
    0.20  m
  • Ambient temperature
    -25…+70 °C
  • Output function
    NO contact, PNP
  • Design
    Threaded barrel
  • Rated switching distance
    3 mm
  • Housing material
    Stainless steel, 1.4305 (AISI 303)
  • Operating voltage
    10…30 VDC
  • Protection class
    IP67
  • Mounting
    Non-flush
  • Electrical connection
    Cable with connector, M8 × 1
  • Ambient Temperature
    -25 degrees celsius, 70 degrees celsius
  • Weight
    20 grams
  • Operating Voltage
    10 volts, 30 volts
  • Country of Origin
    Switzerland

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NI3-EG08K-AP6X-0.2-PSG3M on Powermatic Associates is $160.40. Order now.

About the product

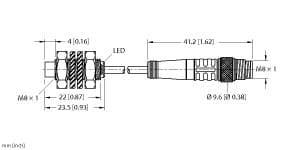

Inductive Sensor, Rated switching distance 3 mm, Cable length (L) 0.2 m, Non-flush, Threaded barrel, M8 × 1, Stainless steel, 1.4305 (AISI 303), DC 3-wire, 10…30 VDC, NO contact, PNP output, Pigtail with male end M8 x 1
