PT3000PSIG-2003-IX-H1143 Turck Industrial Automation Components

Name: PT3000PSIG-2003-IX-H1143
Brand: Turck
Price: 284 USD
Availability: BackOrder

PT3000PSIG-2003-IX-H1143 on Powermatic Associates

Part#:PT3000PSIG-2003-IX-H1143

Alt. Part#:100000864

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

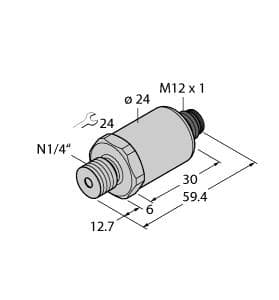

PT3000PSIG-2003-IX-H1143 Turck - PT3000PSIG-2003-IX-H1143 Pressure Transmitter, With Current Output (2-Wire)

Product Details

Weight
96 g
RoHS
Yes
Country Of Origin
CHE
HTS Code
9026204000
Medium temperature
-30…+120 °C
Operating voltage
10…30 VDC
Process connection
1/4” NPT-18 male thread
Ambient temperature
-25…+85 °C
Relative pressure psi
0…3000 psi rel.
Electrical connection
Connector, M12 × 1
Pressure type
Relative pressure
Electrical output
Current output (2-wire)
Design
Without display
Pressure transducer material
Stainless steel 1.4435 (AISI 316L)
Relative pressure bar
0…206.84 bar rel.
Approvals
⁪⁪⁪‌‍‍‌‌‌‌‌‌‌‍‍‌‍‌‍‍‌‍‍‍‌‍‍‌‌‍‌‌ATEX II 1/2 GD, IECEx II 1/2 GD
Housing material
Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyacrylamide 50 % GF UL 94 V-0
Current output
4…20 mA
Protection class
IP67
Weight
96 grams

Ambient Temperature

-25 degrees celsius, 85 degrees celsius

Operating Voltage

10 volts, 30 volts

Country of Origin

Switzerland

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PT3000PSIG-2003-IX-H1143 on Powermatic Associates is $284.00. Order now.

About the product

Pressure Transmitter, With Current Output (2-Wire), , Fully welded metal measuring cell, Pressure range 0…3000 psi rel., 10…30 VDC, Analog output 4…20 mA, Process connection 1/4-18 NPT male thread, Plug-in device, M12 × 1, ATEX, IECEx, Category II 1/2 GD, Ex zone 0, "
