PT7500PSIG-2105-I2-DT043P Turck Industrial Automation Components
Part#:PT7500PSIG-2105-I2-DT043P
Alt. Part#:100002010
Manufacturer:Turck
Category:Industrial Automation Components
Product Lifecycle:Active
Product description
PT7500PSIG-2105-I2-DT043P Turck - PT7500PSIG-2105-I2-DT043P Pressure Transmitter, With Current Output (2-Wire)
Product Details
- Weight 98 g
- Country Of Origin CHE
- HTS Code 9026204000
- Pressure type Relative pressure
- Relative pressure psi 0…7500 psi rel.
- Ambient temperature -40…+100 °C
- Electrical output Current output (2-wire)
- Housing material Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyacrylamide 50 % GF UL 94 V-0
- Pressure transducer material Stainless steel 1.4404 (AISI 316L)
- Relative pressure bar 0…517.1 bar rel.

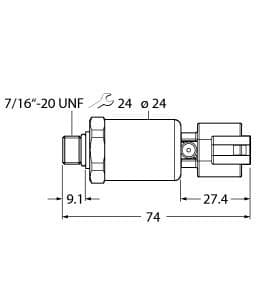

- Process connection 7/16”-20 UNF male thread
- Medium temperature -40…+125 °C
- Operating voltage 7.5…33 VDC
- Design Without display
- Electrical connection Connector, Deutsch DT04-3P
- Current output 4…20 mA
- Protection class IP69K
- Country of Origin Switzerland
- Weight 98 grams
- Ambient Temperature 100 degrees celsius
- Operating Voltage 33 volts
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PT7500PSIG-2105-I2-DT043P on Powermatic Associates is $169.30. Order now.
About the product
Pressure Transmitter, With Current Output (2-Wire), , For mobile hydraulic applications, Fully welded metal measuring cell, Sealless, With pressure tip orifice, Compact and robust design, Excellent EMC properties, Excellent accuracy and long-term stability, Kfz-Norm ISO 16750, Pressure range 0…7500 psi rel., 7.5…33 VDC, Analog output 4…20 mA, Process connection 7/16 UNF (SAE) male thread, Plug-in device, Deutsch DT04-3P, "
