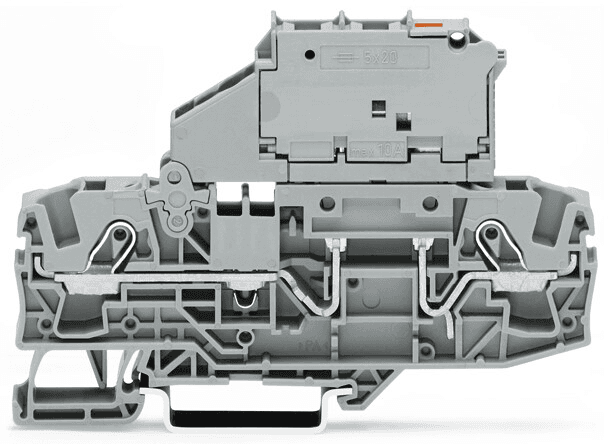

2006-1611/1000-836 WAGO Terminal Blocks

Wago 2006-1611/1000-836 is a terminal designed for feed-through terminal block applications, featuring push-in CAGE CLAMP spring connections for efficient wire installation. It operates with a supply voltage of 230Vdc for its LED indicator and supports a rated current of 10A according to IEC standards, and 15A according to both UL and CSA standards. This terminal is designed with a single deck/level and includes a fused-disconnect feature with a lever type, normally open auxiliary contacts sized 5x20mm, and a blown-fuse LED indicator operating at 230Vdc. It has a rated impulse voltage of 8 kV as per IEC standards. The terminal's net width is 7.5 mm, and it accommodates 1 feed-through pole (1P) for mounting on a DIN-35 rail. Its color is gray, with dimensions of H96.3mm x W7.5mm x D59mm. It is suitable for 0.5mm2 to 10mm2 fine stranded or solid conductors, and for #20AWG to #8AWG fine stranded or solid conductors, with a 6mm2 nominal cross-section. The terminal is made from Polyamide (PA) 66, allowing connection capacity for 2-wires (1 push-in + 1 push-in) (1+1). The rated operating voltage is 800 V according to IEC, 230 V according to UL, and 600 V according to CSA. This part belongs to the TOPJOB S series.
