2202-1303 WAGO Industrial Automation Components

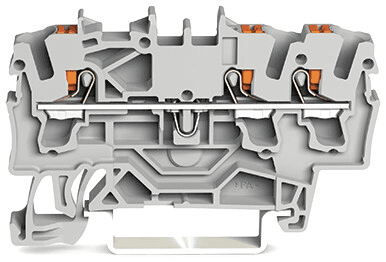

Wago 2202-1303 is a feed-through terminal block featuring push-in CAGE CLAMP spring connections. It supports various rated currents including 24A (IEC), 32A (IEC), 20A (UL), 20A (CSA), 22A (Ex e II), and 20A (Ex e II with jumper). This 1-deck terminal block is designed with side and center marking slots, a test port, and is suitable for Ex e II / Ex I applications. It has a net height of 5.2 mm, a net width for 1 feed-through pole (1P), and is mounted on a DIN-35 rail. The terminal block is colored with red and orange actuators, measures H59.2mm x W5.2mm x D32.9mm, and accommodates 0.25mm2 to 4mm2 fine stranded or solid conductors, as well as #22AWG to #12AWG fine stranded or solid conductors with a 2.5mm2 nominal cross-section. The material is Polyamide (PA) 66, and it includes 3-wires (1 push-in + 2 push-in) (1+2) for connections. The terminal block is rated for 800 V (IEC), 600 V (UL/CSA), and 550 V (Ex e II), and is part of the TOPJOB S series.
