2202-2702 WAGO Industrial Automation Components

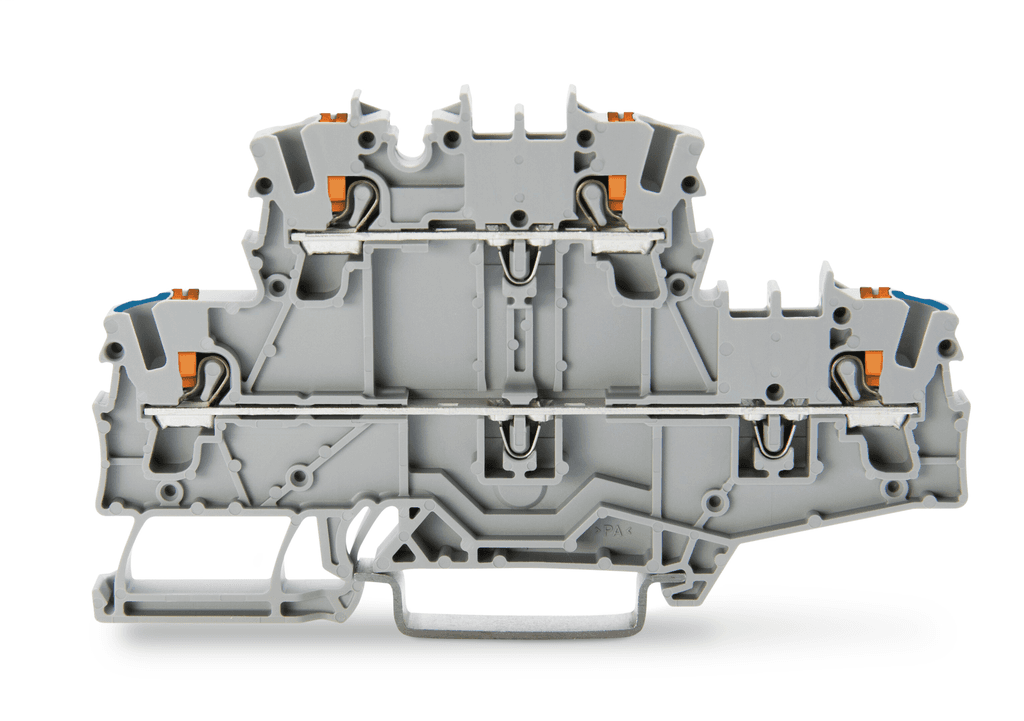

Wago 2202-2702 is a terminal designed for feed-through and neutral-through terminal block applications, featuring push-in CAGE CLAMP spring connections. It supports a rated current of 24A according to IEC and CSA standards, 20A according to UL, and 17.5A for Ex e II applications, which reduces to 17A with a jumper. This double-deck terminal has a blue wire entry on the lower deck and is suitable for Ex e II applications. It has a net height of 8 kV for impulse voltage, rated at 5.2 mm, and a net width accommodating 1 feed-through pole plus a neutral-through (1P+N) on a DIN-35 rail. The terminal's power consumption is indicated by a gray and orange actuator, with dimensions of H92.5mm x W5.2mm x D51.7mm. It is designed for 0.25mm2 to 4mm2 fine stranded or solid conductors and #22AWG to #12AWG fine stranded or solid conductors, with a 2.5mm2 nominal cross-section. The terminal block is made from Polyamide (PA) 66 and includes 2 x 2-wires (2 push-in + 2 push-in) (2+2) for normally closed (NC) auxiliary contacts. It operates at a voltage of 800 V according to IEC, 600 V according to UL and CSA, and 550 V for Ex e II applications. This part is part of the TOPJOB S series.
