2250-301 WAGO Industrial Automation Components
Part#:2250-301
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

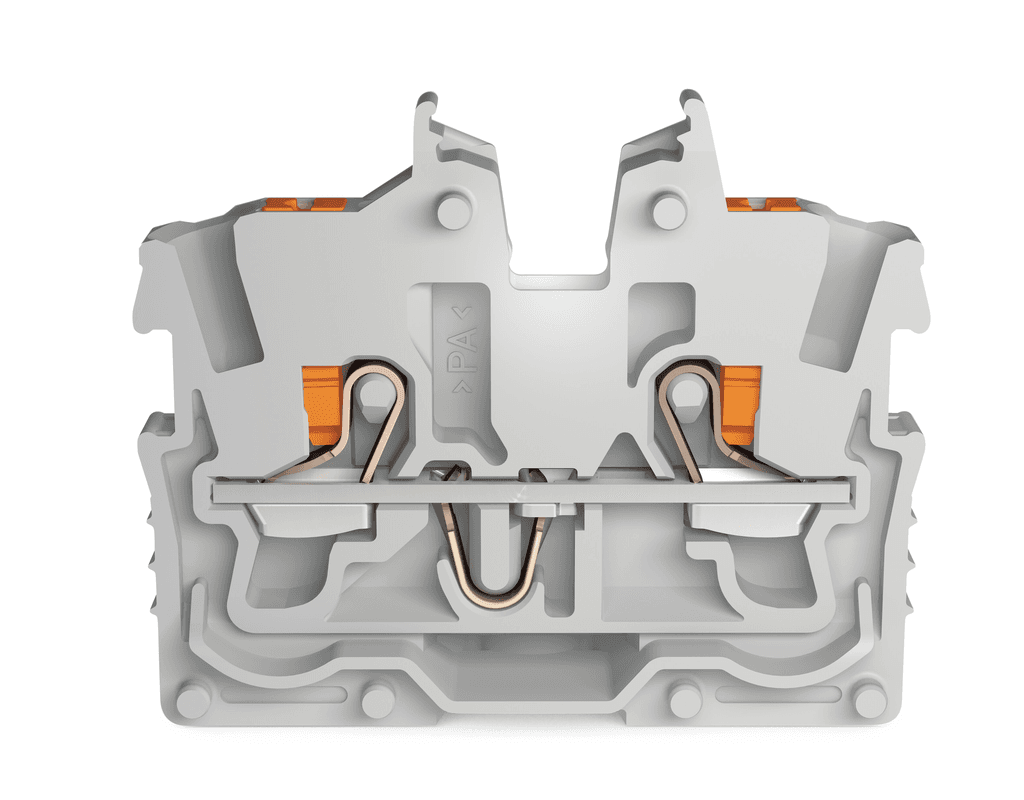

2250-301 WAGO - 2-conductor miniature through terminal block; with push-button; 1 mm²; End terminal block with mounting flange; side and center marking; with test port; Push-in CAGE CLAMP®; 1,00 mm²; gray
Product Details
- Actuator Push-button
- Operating Temperature 105 degrees celsius
- Insulation Material Polyamide
- Current 10 amperes, 13.5 amperes
- Mounting Type Mounting Flange
- Conductor Material Copper
- Strip Length 0.43 inches, 11 millimeters
- Depth 1.307 inches, 33.2 millimeters
- Width 0.138 inches, 3.5 millimeters
- Conductor Size 1.5 millimeters, 16 american wire gauge
- Voltage 300 volts, 500 volts
- Country of Origin Germany
- Color Gray
- Package Type Box
- Flammability Class V0
- Weight 2.524 grams
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 2250-301 on Powermatic Associates is $1.55. Order now.
About the product
Wago 2250-301 is a feed-through/thru miniature end terminal block designed for push-in CAGE CLAMP spring connections. It supports a variety of rated currents including 13.5A (IEC), 17.5A (IEC), 10A (UL), 10A (CSA), 13.5A (Ex e II), and 12A (Ex e II with jumper). This 1-deck/level terminal block features side and center marking slots, a test port, and is designed for a control voltage application with flange/surface mounting. The terminal block is gray, has dimensions of H27.2mm x W3.5mm x D33.2mm, and is suitable for 0.14mm2 to 1.5mm2 fine stranded or solid conductors, including #24AWG to #16AWG sizes, with a 1mm2 nominal cross-section. It is made from Polyamide (PA) 66, accommodates 2-wires (1 push-in + 1 push-in) for normally closed (NC) auxiliary contacts, and operates at a voltage rating of 500 V (IEC), 300 V (UL), 300 V (CSA), and 352 V (Ex e II) within the TOPJOB S series.
