231-634/019-000 WAGO Industrial Automation Components

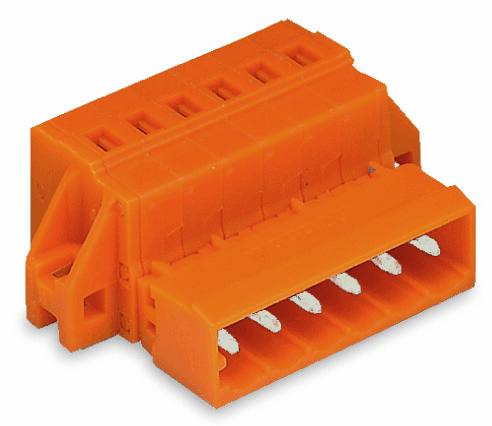

WAGO 231-634/019-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 320V (III/3), 320V (III/2), and 630V (II/2), rated impulse voltages of 4kV across these categories, and a rated current of 12A. UL and CSA approvals include ratings of 300V and 600V with currents of 15A and 10A under different use groups. The connector features 4 connection points, supports a single connection type across one level, utilizing CAGE CLAMP technology for secure connections. It accommodates solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 12 AWG), with specific strip lengths for optimal connection. The physical dimensions include a pin spacing of 5.08mm, width of 35.12mm, height of 14.3mm, and depth of 27.5mm. It offers variable coding, multiple mounting options including mounting flange, feed-through, and panel mounting, with anti-rotation protection but lacks mismating protection and locking features. The connector is orange, made from Polyamide (PA66) with a UL94 V0 flammability class, and uses Chrome-Nickel spring steel and Electrolytic Copper with tin plating for its contacts. It operates within a temperature range of -60 to +100°C, is RoHS compliant without exemptions, and comes in boxes of 50 pieces with the country of origin being Germany.
