231-640/129-000 WAGO Industrial Automation Components

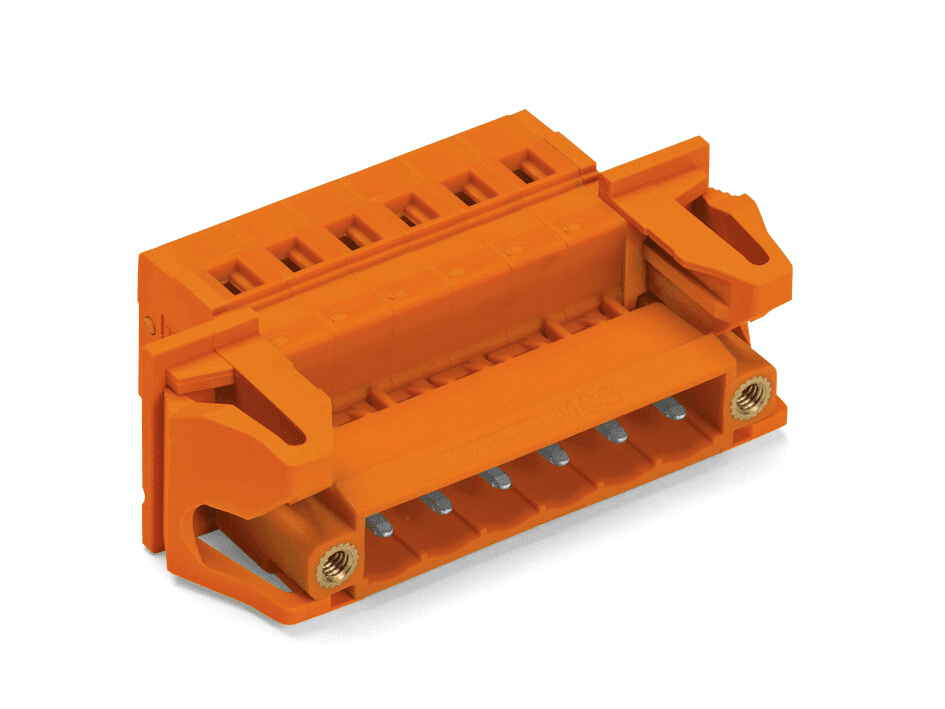

WAGO 231-640/129-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed for applications as specified by DIN EN 61984, indicating that these connectors do not have breaking capacity and should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards with nominal voltages of 320V and 630V under different conditions, rated impulse voltage of 4kV, and a rated current of 12A. UL and CSA approvals are included, with ratings per UL 1059 and CSA standards, featuring rated voltages up to 600V and rated currents up to 15A under various use groups. The connector accommodates 10 connection points and supports a single connection type with CAGE CLAMP technology, suitable for solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 or 28 to 12 AWG, and includes specific requirements for ferruled conductors. Physical specifications include a pin spacing of 5.08mm, dimensions of 71.8mm in width, 17.5mm in height, and 27.5mm in depth, with a male connector/plug design and tin-plated electrolytic copper contacts housed in an orange, polyamide (PA66) body with a V0 flammability rating. It operates within a temperature range of -60 to +100°C, is RoHS compliant with specific exemptions, and comes in a box of 25 pieces. The product is manufactured in Germany, with a GTIN of 4050821280040 and a customs tariff number of 85366930000.
