232-514/007-000 WAGO Industrial Automation Components

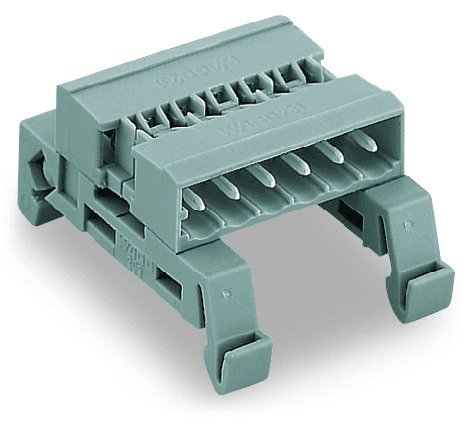

WAGO 232-514/007-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed for use on DIN-35 rails with anti-rotation protection and variable coding. It features a total of 14 potentials, a single connection type, and one level with a 14 pole number for the connection. The part has a pin spacing of 5mm, dimensions of 73.2mm in width, 25.9mm in height, 6.5mm height from the surface, 15mm height from the upper edge of DIN-rail, and a depth of 42.5mm. It is equipped with a male connector/plug for pluggable connections but lacks mismating protection, plugging without loss of pin spacing, and locking of plug-in connection. The connector is made from gray Polyamide (PA66) with a flammability class of UL94 V0, and the contacts are made from Electrolytic Copper (ECu) with tin plating. It has a fire load of 0.433MJ and weighs 14g. The connector operates within a temperature range of -60 to +100°C and has a processing temperature range of -35 to +60°C. It is RoHS compliant without exemption, has a packaging unit of 25 pieces per box, and is manufactured in Germany. The electrical specifications include a nominal voltage of 250V to 630V, rated impulse voltage of 4kV, and a rated current of 12A to 15A, depending on the standards (IEC/EN, UL, CSA) and use groups. The product's commercial data includes eClass 10.0 and 9.0 classifications of 27-14-11-06, ETIM 8.0 and 7.0 classifications of EC001284, a GTIN of 4055143748995, and a customs tariff number of 85366930000.
