236-402/334-604 WAGO Industrial Automation Components

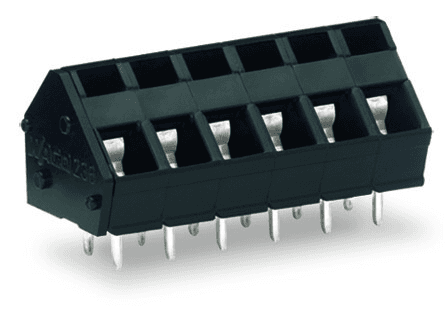

WAGO 236-402/334-604 is a printed circuit connector designed for lead-free reflow soldering profiles per DIN EN 61760-1 and IEC 60068-2-58, with a maximum peak temperature of 260°C. It features nominal voltages of 200V (III/3) and 320V (II/2, III/2), rated impulse voltages of 4kV, and a rated current of 24A according to IEC/EN 60664-1. UL ratings include a rated voltage of 300V and rated currents of 15A (Use Group B) and 10A (Use Group D), with similar ratings under CSA. The connector has two connection points, supports a single connection type with one level, and utilizes CAGE CLAMP technology with an operating tool actuation type. It accommodates solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 (28 to 12 AWG), including options for insulated and uninsulated ferrules. The physical specifications include a pin spacing of 5mm, dimensions of 12.3mm in width, 16.6mm in height, and 14mm in depth, with a solder pin length of 3.6mm. The connector is black, made from Polyamide (PA46) with a flammability class of UL94 V2, and features chrome-nickel spring steel for the clamping spring and electrolytic copper with tin plating for contacts. It operates within a temperature range of -60 to +115°C, is RoHS compliant without exemptions, and comes in boxes of 420 pieces.
