261-321 WAGO Industrial Automation Components
Part#:261-321
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

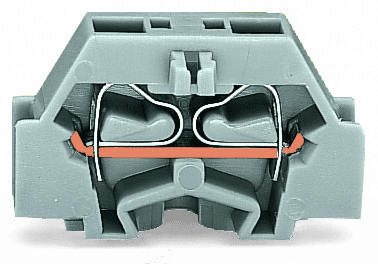

261-321 WAGO - Space-saving, 2-conductor end terminal block; without push-buttons; without protruding snap-in mounting foot; 1-pole; for terminal strips with snap-in mounting feet; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray
Product Details
- Weight 2.038000536 g
- Country Of Origin Switzerland
- HTS Code 85369010000
- Flammability Class V0
- Mounting Type Snap-in Foot
- Conductor Material Copper
- Weight 2.038 grams
- Current 24 amperes
- Actuator Operating Tool
- Voltage 500 volts
- Insulation Material Polyamide
- Depth 1.106 inches, 28.1 millimeters
- Width 0.236 inches, 6 millimeters
- Conductor Size 14 american wire gauge, 2.5 millimeters
- Package Type Box
- Color Gray
- Strip Length 0.35 inches, 9 millimeters
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 261-321 on Powermatic Associates is $0.82. Order now.
About the product
Wago 261-321 is a terminal designed for space-saving feed-through/end terminal block applications, featuring CAGE-CLAMP spring connections for secure and maintenance-free operation. It supports a rated current of 24A and is designed as a 1-deck/level with side/lateral wire entry. The terminal has a net height of 6 kV, rated impulse voltage (Uimp) of 6 mm, and a net width accommodating 1 feed-through pole (1P). It is designed to mount on DIN rails or surfaces via an accessory snap-in foot. The terminal is colored gray and has dimensions of H18.1mm x W6mm x D28.1mm, suitable for 0.08mm2 to 2.5mm2 fine stranded or solid conductors and #28AWG to #14AWG fine stranded or solid conductors. It features a cross-section made from polyamide (PA) 66 and halogen-free materials, with 2-wires (1 clamp + 1 clamp) (1+1) connection system, and is designed to operate at a control voltage (AC) with a diameter rating of (IEC) 500 V.
