261-333 WAGO Industrial Automation Components
Part#:261-333
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

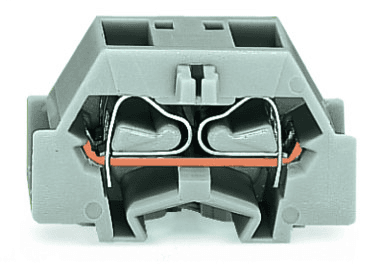

261-333 WAGO - 4-conductor terminal block; without push-buttons; with fixing flange; 1-pole; for screw or similar mounting types; Fixing hole 3.2 mm Ø; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; light gray
Product Details
- Weight 3.700000973 g
- Country Of Origin Switzerland
- HTS Code 85369010000
- Current 24 amperes
- Conductor Size 14 american wire gauge, 2.5 millimeters
- Width 0.394 inches, 10 millimeters
- Conductor Material Copper
- Weight 3.700 grams
- Flammability Class V0
- Actuator Operating Tool
- Package Type Box
- Depth 1.106 inches, 28.1 millimeters
- Strip Length 0.35 inches, 9 millimeters
- Mounting Type Mounting Flange
- Insulation Material Polyamide
- Color Gray
- Voltage 500 volts
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 261-333 on Powermatic Associates is $1.52. Order now.
About the product
Wago 261-333 is a feed-through terminal block designed for efficient wire connection and distribution. It features CAGE-CLAMP spring connections for secure and maintenance-free wire termination. This terminal block is rated for a current of 24A according to IEC standards and is designed with a single deck that allows for side or lateral wire entry. The terminal has a net height of 6 kV and accommodates a single feed-through pole (1P) with a control voltage AC through a 3.2mm fixing hole. Its dimensions are H18.1mm x W10mm x D28.1mm, making it suitable for 0.08mm^2 to 2.5mm^2 fine stranded or solid conductors and #28AWG to #14AWG fine stranded or solid conductors. The terminal block is made from Polyamide (PA) 66 and halogen-free materials, ensuring durability and environmental safety. It supports a 4-wire connection (2 clamps + 2 clamps) and has a rated voltage of 500 V according to IEC standards.
