261-411/331-000 WAGO Industrial Automation Components

Name: 261-411/331-000
Brand: WAGO
Price: 0.86 USD
Availability: BackOrder

261-411/331-000 on Powermatic Associates

Part#:261-411/331-000

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

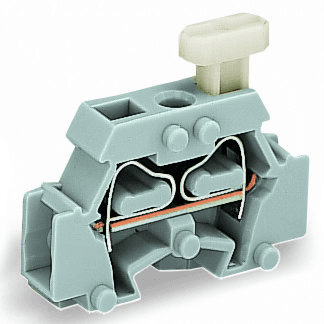

261-411/331-000 WAGO - 2-conductor terminal block; on one side with push-button; with fixing flange; 1-pole; for screw or similar mounting types; Fixing hole 3.2 mm Ø; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray

Product Details

Weight
2.570000676 g
Country Of Origin
Switzerland
HTS Code
85369010000
Actuator
Operating Tool
Package Type
Box
Conductor Size
14 american wire gauge, 2.5 millimeters
Voltage
500 volts
Depth
1.106 inches, 28.1 millimeters
Width
0.236 inches, 6 millimeters
Insulation Material
Polyamide
Mounting Type
Mounting Flange
Conductor Material
Copper
Weight
2.570 grams
Operating Temperature
105 degrees celsius
Current
24 amperes
Color
Gray
Strip Length
0.35 inches, 9 millimeters
Flammability Class
V0

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 261-411/331-000 on Powermatic Associates is $0.86. Order now.

About the product

Wago 261-411/331-000 is a terminal designed for feed-through terminal block applications, featuring CAGE-CLAMP spring connections for secure and efficient wire connection. It supports a rated current of 24A according to IEC standards and is designed as a 1-deck/level terminal with button on one side, a marking slot, and side/lateral wire entry. The terminal has a net height of 6 kV and a net width accommodating 1 feed-through pole (1P), with a control voltage AC through a 3.2mm fixing hole. Its color is gray, and it has dimensions suitable for 0.08mm2 to 2.5mm2 fine stranded or solid conductors, as well as for #28AWG to #14AWG fine stranded or solid conductors. The terminal block is made from Polyamide (PA) 66 and halogen-free materials, ensuring compatibility with a wide range of installation environments. It features 2-wires (1 clamp + 1 clamp) (1+1) connection and is designed to withstand a voltage of up to 500 V according to IEC standards, with dimensions of H23.3mm x W6mm x D28.1mm.
