264-105 WAGO Industrial Automation Components
Part#:264-105
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

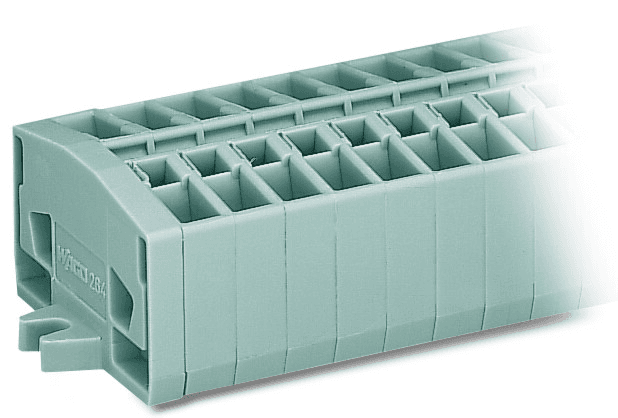

264-105 WAGO - 2-conductor terminal strip; without push-buttons; with fixing flanges; 5-pole; for screw or similar mounting types; Fixing hole 3.2 mm Ø; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray
Product Details
- Weight 21.3100056 g
- Country Of Origin Germany
- HTS Code 85369010000
- Conductor Material Copper
- Voltage 800 volts
- Current 24 amperes
- Depth 1.26 inches, 32 millimeters
- Insulation Material Polyamide
- Country of Origin Germany
- Width 1.811 inches, 46 millimeters
- Actuator Operating Tool
- Mounting Type Mounting Flange
- Color Gray
- Strip Length 0.35 inches, 9 millimeters
- Flammability Class V0
- Conductor Size 12 american wire gauge, 2.5 millimeters
- Weight 21.310 grams
- Package Type Box
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 264-105 on Powermatic Associates is $7.37. Order now.
About the product
Wago 264-105 is a feed-through terminal strip designed for efficient wire connection and distribution. It features CAGE-CLAMP spring connections for secure and maintenance-free wire termination. This terminal strip is rated for a current of 24A according to IEC standards and is designed as a 1-deck/level unit. It has a net height of 8 kV and includes 5 feed-through poles, accommodating a control voltage with a 3.2mm fixing hole. The product is colored gray and has dimensions of H22.1mm x W46mm x D32mm, making it suitable for 0.08mm2 to 2.5mm2 fine stranded or solid conductors and #28AWG to #12AWG fine stranded or solid conductors. The terminal strip is constructed from Polyamide (PA) 66 and halogen-free materials, ensuring compatibility with a wide range of installation environments. It supports 10-wires across 5 clamps on each side (5+5) and is designed to handle a voltage of up to 800V according to IEC standards.
