264-120 WAGO Industrial Automation Components

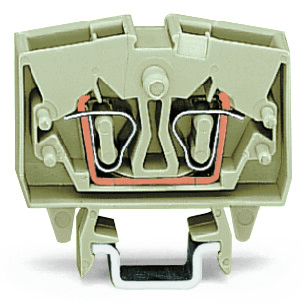

Wago 264-120 is a feed-through/thru miniature terminal block designed for efficient connectivity. It features CAGE-CLAMP spring connections for secure and maintenance-free wire connection. This terminal block is rated for currents up to 23A in Ex e II applications, 20A under UL standards, and 20A according to CSA. It is a single-deck terminal with a center marking slot, equipped with a test point, and is suitable for Ex e II hazardous areas. The rated impulse voltage stands at 6 mm, and it accommodates a net width for 1 feed-through pole (1P). Designed for mounting on DIN-15 rail, the terminal block comes in light gray and has dimensions of H32mm x W6mm x D24.5mm. It is compatible with wire sizes ranging from 0.08mm2 to 2.5mm2 for fine stranded conductors and 0.5mm2 to 2.5mm2 for solid conductors, including #28AWG to #12AWG fine stranded conductors and #20AWG to #12AWG solid conductors. The terminal block is made from Polyamide (PA) 66, supports 2-wires connection (1 clamp + 1 clamp) for normally closed (NC) auxiliary contacts, and operates at a voltage rating of 300 V under UL, 600 V under CSA, and 690 V in Ex e II applications.
