264-301 WAGO Industrial Automation Components
Part#:264-301
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

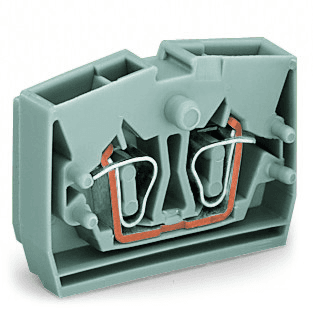

264-301 WAGO - 2-conductor end terminal block; without push-buttons; with fixing flange; 1-pole; for screw or similar mounting types; Fixing hole 3.2 mm Ø; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray
Product Details
- Weight 3.907001028 g
- Country Of Origin Switzerland
- HTS Code 85369010000
- Color Gray
- Mounting Type Mounting Flange
- Current 24 amperes
- Strip Length 0.35 inches, 9 millimeters
- Operating Temperature 105 degrees celsius
- Conductor Material Copper
- Package Type Box
- Conductor Size 12 american wire gauge, 2.5 millimeters
- Voltage 800 volts
- Actuator Operating Tool
- Flammability Class V0
- Width 0.236 inches, 6 millimeters
- Depth 1.26 inches, 32 millimeters
- Weight 3.907 grams
- Insulation Material Polyamide
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 264-301 on Powermatic Associates is $1.29. Order now.
About the product
Wago 264-301 is a feed-through/end terminal block designed for efficient wire connection and distribution. It features CAGE-CLAMP spring connections for secure and maintenance-free wire termination. This terminal block is rated for a current of 24A according to IEC standards and is designed as a single-deck level unit. It has a net height of 8 kV and accommodates a control voltage with a 3.2mm fixing hole. The terminal block is colored gray and has dimensions of H22.1mm x W6mm x D32mm, making it suitable for 0.08mm^2 to 2.5mm^2 fine stranded or solid conductors and #28AWG to #12AWG fine stranded or solid conductors. It is constructed from Polyamide (PA) 66 and halogen-free materials for enhanced durability and safety. The terminal block supports a 2-wire connection (1 clamp + 1 clamp) and is designed to handle a voltage of up to 800V according to IEC standards.
