264-324 WAGO Industrial Automation Components
Part#:264-324
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

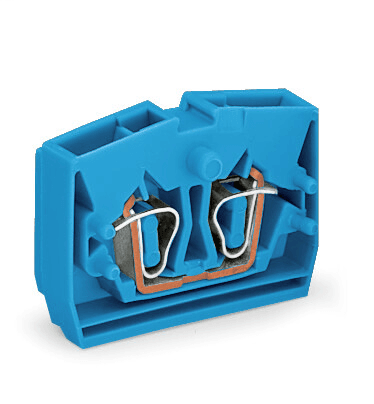

264-324 WAGO - 2-conductor center terminal block; without push-buttons; suitable for Ex i applications; 1-pole; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; blue
Product Details
- Weight 3.825001006 g
- Country Of Origin Switzerland
- HTS Code 85369010000
- Current 24 amperes
- Weight 3.825 grams
- Flammability Class V0
- Conductor Size 12 american wire gauge, 2.5 millimeters
- Color Blue
- Voltage 800 volts
- Conductor Material Copper
- Width 0.236 inches, 6 millimeters
- Operating Temperature 105 degrees celsius
- Actuator Operating Tool
- Strip Length 0.35 inches, 9 millimeters
- Insulation Material Polyamide
- Depth 1.26 inches, 32 millimeters
- Package Type Box
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 264-324 on Powermatic Associates is $1.38. Order now.
About the product
Wago 264-324 is a neutral-through center terminal block designed with CAGE-CLAMP spring connections. It features a 1-deck/level design and is suitable for Ex I applications. This terminal block is rated for a current of 24A according to IEC standards and can accommodate a voltage up to 800V. It is designed for use with 0.08mm² to 2.5mm² fine stranded or solid conductors, as well as #28AWG to #12AWG fine stranded or solid conductors. The terminal block is made from polyamide (PA) 66 and halogen-free materials, ensuring compatibility with a wide range of environmental requirements. It has a net height of 8 kV, a neutral-through pole width, and dimensions of H22.1mm x W6mm x D32mm. The terminal block also features normally closed (NC) auxiliary contacts with a 2-wires configuration (1 clamp + 1 clamp).
