280-941/281-492 WAGO Industrial Automation Components
Part#:280-941/281-492
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

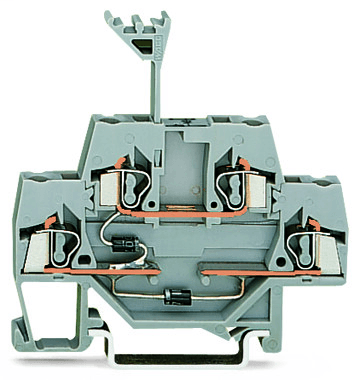

280-941/281-492 WAGO - Component terminal block; double-deck; with 2 diodes 1N4007; Top anode, left-side anode; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray
Product Details
- Weight 10.2700027 g
- Country Of Origin Germany
- HTS Code 85369010000
- Conductor Size 14 american wire gauge, 2.5 millimeters
- Weight 10.270 grams
- Country of Origin Germany
- Width 0.197 inches, 5 millimeters
- Actuator Operating Tool
- Operating Temperature 105 degrees celsius
- Color Gray
- Strip Length 0.35 inches, 9 millimeters
- Current 0.5 amperes
- Insulation Material Polyamide
- Flammability Class V0
- Height 2.52 inches, 64 millimeters
- Mounting Type DIN-35 Rail
- Conductor Material Aluminum, Copper
- Package Type Box
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 280-941/281-492 on Powermatic Associates is $24.53. Order now.
About the product
Wago 280-941/281-492 is a terminal designed for component feed-through/thru terminal block applications, featuring CAGE-CLAMP spring connections for secure and maintenance-free connections. It supports a rated current of 0.5A according to IEC standards and is designed with 2 decks/levels (double-deck) incorporating 2 diodes (1N4007) with Normally Open (NO) auxiliary contacts, where the anode is positioned on the top and left side. The terminal is rated for a voltage of 250Vac (diode) and has a net width of 5 mm. It accommodates 1 feed-through + 1 disconnect feed-through poles (2P) and is suitable for mounting on DIN-35 rails (35 x 15 / 35 x 7.5). The terminal comes in gray, with dimensions of H64mm x W5mm x D58.5mm, and is designed to work with cross-sections ranging from 0.08mm2 to 2.5mm2 for fine stranded or solid conductors, or #28AWG to #14AWG fine stranded or solid conductors. It is made from Polyamide (PA) 66 and has a connection capacity of 4-wires (2 clamps + 2 clamps) (2+2).
