706-3037/200-100 WAGO Industrial Automation Components

Name: 706-3037/200-100
Brand: WAGO
Price: 423 USD
Availability: BackOrder

706-3037/200-100 on Powermatic Associates

Part#:706-3037/200-100

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

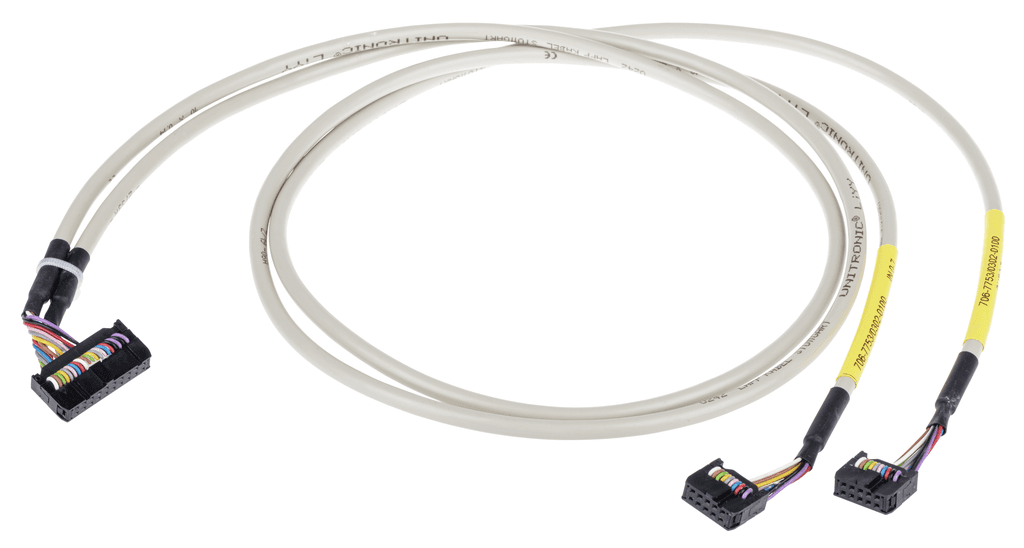

706-3037/200-100 WAGO - System cable; for Schneider TSX; 8 digital outputs; Length: 1 m; Conductor cross-section: 0.14 mm²

Product Details

Operating Voltage
35 volts
Package Type
Bag
Cable Length
1 meter
Weight
118.000 grams

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 706-3037/200-100 on Powermatic Associates is $423.00. Order now.

About the product

WAGO 706-3037/200-100 is an automation part designed with 8 digital outputs and operates at a voltage of AC/DC 35V or less. It supports a maximum current of 1A per wire, but this is reduced to 0.7A when using more than 10 wires. This part is compatible with Schneider TSX models TSX DSZ 04T22 and TSX DSZ 08T2. It utilizes LiYY cable type with a color code according to DIN VDE 47100 and features a pluggable connector per DIN 41651 for connection 1, with a 10-pole female connector and a wire cross-section of 0.14mm2. Connection 2 is designed for Schneider TSXBLZH01 with a 15-pole system connection. The cable length is 1m, and the part weighs 118g. It operates within an ambient temperature range of -20 to +50 degrees Celsius. The product is RoHS compliant, packaged in a bag, and has a single piece per unit (SPU). It is manufactured in France, with a GTIN of 4055143983990 and a customs tariff number of 85444290900.
